Sliding doors with side panels
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)

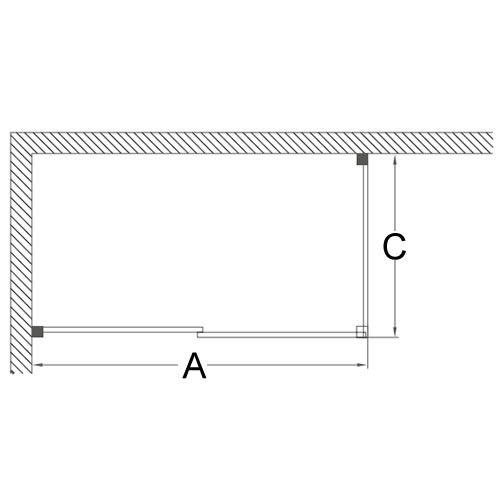

sliding_door_with_side.jpg 110cm (A), 76cm (C) Soft close slider 110cm & 80cm side panel 110cm (A), 80cm (C) Soft close slider 110cm & 90cm side panel 110cm (A), 90cm (C)
Soft close slider 120cm & 76cm side panel 120cm (A), 76cm (C) Soft close slider 120cm & 80cm side panel 120cm (A), 80cm (C) Soft close slider 120cm & 90cm side panel 120cm (A), 90cm (C)

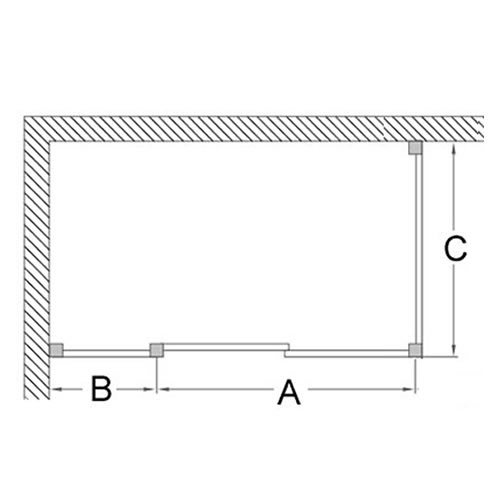

Soft close slider 140cm & 80cm side panel 140cm (A), 80cm (C) Soft close slider 140cm & 90cm side panel 140cm (A), 90cm (C) Soft close slider 120cm, 30cm in-line panel & 76cm side panel 120cm (A), 30cm (B), 76cm (C)
Soft close slider 120cm, 30cm in-line panel & 80cm side panel 120cm (A), 30cm (B), 80cm (C) Soft close slider 140cm, 30cm in-line panel & 76cm side panel 140cm (A), 30cm (B), 76cm (C) Soft close slider 140cm, 30cm in-line panel & 80cm side panel 140cm (A), 30cm (B), 80cm (C)
Alternate Text

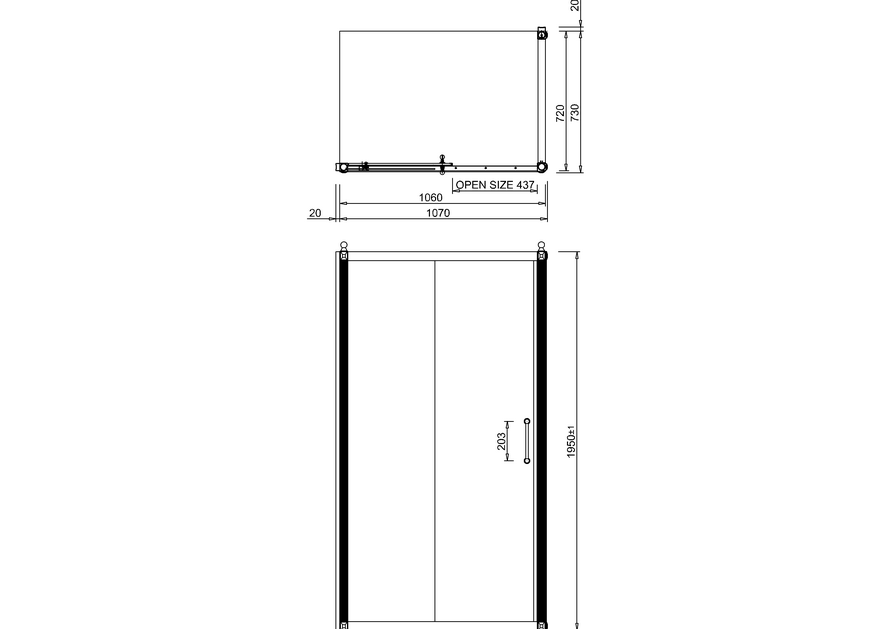

As Shown
C6S 1100mm soft close slider
C12 760mm side panel
BU75  -  Combined product code
Colour
C6S - door - Polished Aluminum
C12 - side panel - Polished Aluminum
Material
C6S - door - Aluminum
C12 - side panel - Aluminum
Size
C6S - 1060 x 1950mm
C12 - 725 x 1950mm
Nett Weight
C6S - door - 38.6kg
C12 - side panel - 21.7kg
Gross Weight Including Packaging
C6S - door - 43.8kg
C12 - side panel - 25.8kg
Packed Dimension
C6S - 2010 x 1125 x 90 = 0.2035 m3
C12 - 2010 x 790 x 87 = 0.1381 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN14428:2015
Safety Glass : BS EN 12150-1:2015
Additional Information
Safety glass with 3M™ Easy Clean Coating
Slider door 8mm glass, fix panel and side panel 6mm glass
SP94 4 runners (one set) for slider C6S, C7S, C8S.
SP885 bottom sealing strip of fixed panel for product C6S, C7S, C8S
SP514 decorative cap for C6S, C7S, C8S (B047)
SP1116 magnetic strip B108 for C8S, C6S, C7S (L=1896, 1930)
SP1356 moving glass for C6S including magnetic strip
SP477 part BO46 for C6S, C7S, C8S
SP242 side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP129 soft Close Mechanism
SP515 supporting bar for side panel C10, C11, C12, C13, C15
SP921 top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
Downloads
  • Instructions - PDF - C6S (English)
  • Instructions - PDF - C12 (English)
  • Instructions - PDF - C6S (French)
  • Instructions - PDF - C12 (French)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
