Sliding doors with side panels
Product Options
Sizes (click on size to refresh details)
110cm (A), 76cm (C)
|
110cm (A), 80cm (C)
|
110cm (A), 90cm (C)
|
|
120cm (A), 76cm (C)
|
120cm (A), 80cm (C)
|
120cm (A), 90cm (C)
|
|
140cm (A), 80cm (C)
|
140cm (A), 90cm (C)
|
120cm (A), 30cm (B), 76cm (C)
|
|
120cm (A), 30cm (B), 80cm (C)
|
140cm (A), 30cm (B), 76cm (C)
|
140cm (A), 30cm (B), 80cm (C)
|
As Shown
| C8SA 1400 Sliding door BOX A ONLY |
| C13 800mm side panel |
| C8SB 1400 Sliding door BOX B ONLY |
| BU82 - Combined product code |
Colour
| C8SA - door - Polished Aluminum |
| C13 - side panel - Polished Aluminum |
| C8SB - door - Polished Aluminum |
Gross Weight Including Packaging
| C8SA - door - 29.1kg |
| C13 - side panel - 28.3kg |
| C8SB - door - 25.9kg |
Packed Dimension
| C8SA - 780 x 85 x 2015 = 0.1336 m3 |
| C13 - 2010 x 830 x 87 = 0.1451 m3 |
| C8SB - 735 x 105 x 2045 = 0.1578 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M Easy Clean Coating |
|
Slider door 8mm glass, fix panel and side panel 6mm glass |
| SP94 | 4 runners (one set) for slider C6S, C7S, C8S. |
| SP885 | bottom sealing strip of fixed panel for product C6S, C7S, C8S |
| SP514 | decorative cap for C6S, C7S, C8S (B047) |
| SP1116 | magnetic strip B108 for C8S, C6S, C7S (L=1896, 1930) |
| SP477 | part BO46 for C6S, C7S, C8S |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP129 | soft Close Mechanism |
| SP515 | supporting bar for side panel C10, C11, C12, C13, C15 |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP1774 | vertical seal B042 for Burlington slider C6S, C7S, C8S fixed panel |
Downloads
- Instructions - PDF - C8SA (English)
- Instructions - PDF - C13 (English)
- Instructions - PDF - C8SB (English)
- Instructions - PDF - C13 (French)
-
2D CAD-File - DWG -
BU82
(BU82_LD.dwg)
-

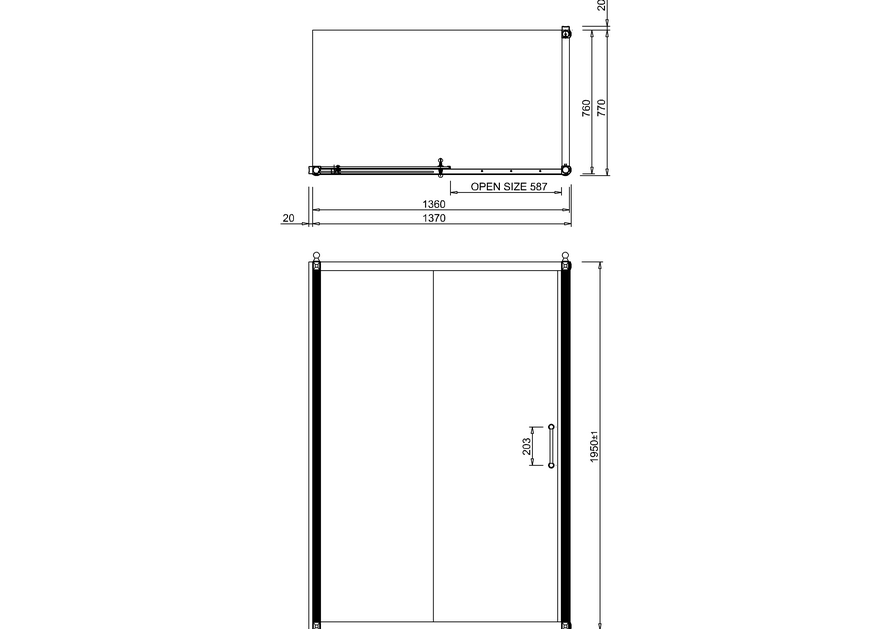

2D Drawing - PDF -
BU82
(BU82_LD.pdf)
2D Drawing - PDF - BU82
