Sliding doors with side panels

Product Options

Sizes (click on size to refresh details)

110cm (A), 76cm (C)	110cm (A), 80cm (C)	110cm (A), 90cm (C)
120cm (A), 76cm (C)	120cm (A), 80cm (C)	120cm (A), 90cm (C)
140cm (A), 80cm (C)	140cm (A), 90cm (C)	120cm (A), 30cm (B), 76cm (C)
120cm (A), 30cm (B), 80cm (C)	140cm (A), 30cm (B), 76cm (C)	140cm (A), 30cm (B), 80cm (C)

As Shown

C8SA 1400 Sliding door BOX A ONLY

C16 300mm inline panel

C8SB 1400 Sliding door BOX B ONLY

C12 760mm side panel

BU89 - Combined product code

Colour

C8SA - door - Polished Aluminum

C16 - inline panel - Polished Aluminum

C8SB - door - Polished Aluminum

C12 - side panel - Polished Aluminum

Material

C8SA - door - Aluminium

C16 - inline panel - Aluminum

C8SB - door - Aluminium

C12 - side panel - Aluminum

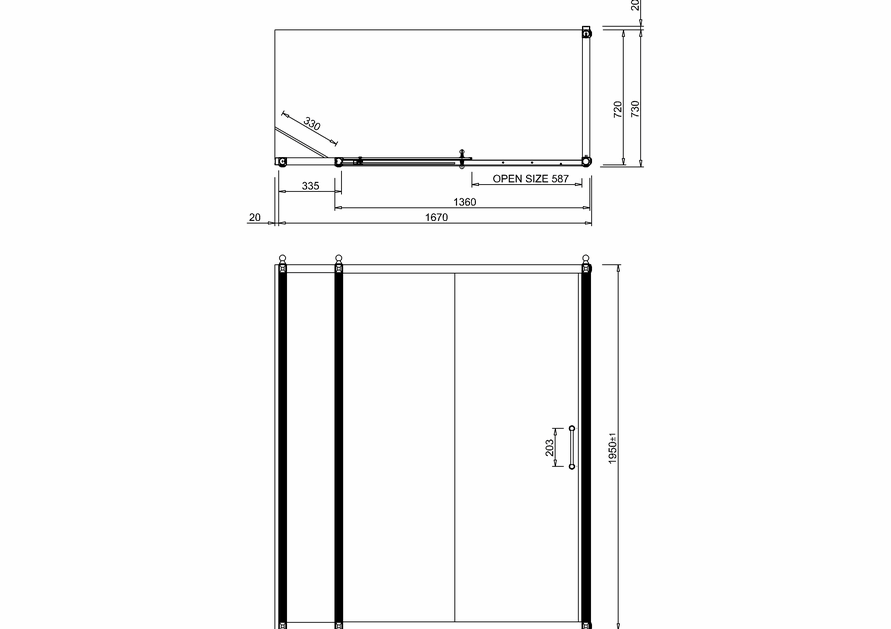

Size

C8SA - 130 x 1950mm

C16 - 335 x 1950mm

C8SB - 1360 x 1950mm

C12 - 725 x 1950mm

Nett Weight

C8SA - door - 26.2kg

C16 - inline panel - 11.1kg

C8SB - door - 22.7kg

C12 - side panel - 21.7kg

Gross Weight Including Packaging

C8SA - door - 29.1kg

C16 - inline panel - 13.7kg

C8SB - door - 25.9kg

C12 - side panel - 25.8kg

Packed Dimension

C8SA - 780 x 85 x 2015 = 0.1336 m3

C16 - 2010 x 395 x 87 = 0.0691 m3

C8SB - 735 x 105 x 2045 = 0.1578 m3

C12 - 2010 x 790 x 87 = 0.1381 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

Safety Glass : BS EN 12150-1:2015

Additional Information

Safety glass with 3M Easy Clean Coating

Slider door 8mm glass, fix panel, in-line panel and side panel 6mm glass

Spare parts

SP94	4 runners (one set) for slider C6S, C7S, C8S.
SP885	bottom sealing strip of fixed panel for product C6S, C7S, C8S
SP514	decorative cap for C6S, C7S, C8S (B047)
SP59	inline Panel Spare Kit
SP1116	magnetic strip B108 for C8S, C6S, C7S (L=1896, 1930)
SP477	part BO46 for C6S, C7S, C8S
SP242	side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP129	soft Close Mechanism
SP407	support bar for C16, C17, C23 (B032, L=330mm)
SP515	supporting bar for side panel C10, C11, C12, C13, C15
SP921	top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
SP1774	vertical seal B042 for Burlington slider C6S, C7S, C8S fixed panel
