ClearGreen Baths - Verde Baths
Product Options
Bath size options
|
1600 x 750mm
|
1700 x 700mm
|
1700 x 750mm
|
1700 x 800mm
|
1800 x 750mm
|
|
1800 x 800mm
|
1800 x 900mm
|
1900 x 800mm
|
||

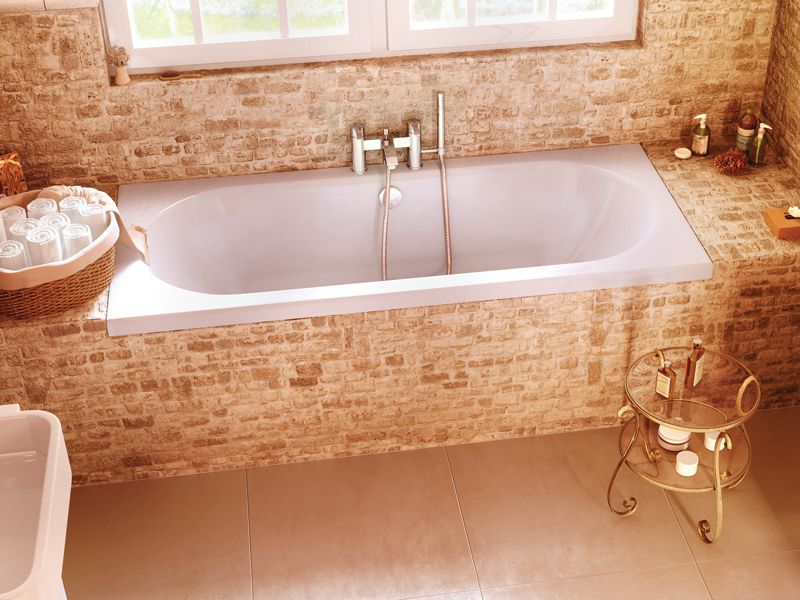

As Shown
| R9 Verde bath |
Colour
| R9 - bath - Gloss White |
Material
| R9 - bath - Acrylic |
Nett Weight
| R9 - bath - 24.8kg |
Gross Weight Including Packaging
| R9 - bath - 25.4kg |
Packed Dimension
| R9 - 1710 x 760 x 425 = 0.5523 m3 |
Bath water capacity
| 110 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R25F - Front bath panel 1700 |
| R28E - End bath panel 750 |
| CW8 - Click-clack bath waste |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
| SP705 | rectangular ABS block on the Cleargreen bath |
| SP704 | square ABS block on the Cleargreen bath |
Downloads
-
2D CAD-File - DWG -
R9
(R9.dwg)
-
2D Drawing - PDF -
R9
(R9.pdf)
2D Drawing - PDF - R9
-
3D DWG - File - DWG
-
R9
(BSA-1773HWC.dwg)
-
3D DXF - File - DXF
-
R9
(BSA-1773HWC.dxf)
-
3D IGS - File - IGS
-
R9
(BSA-1773HWC.igs)
-
3D RFA BIMM Objects - File - RFA
-
R9
(R9.rfa)
