Welcome to the Bathroom Brands Technical Whitebook

search autorenew

ClearGreen Baths - Verde Baths
asaq2.Model.Web_product_new?.web_name
Product Options
Bath size options
Verde 1600 x 750mm - Cleargreen 1600 x 750mm Verde 1700 x 700mm - Cleargreen 1700 x 700mm Verde 1700 x 750mm - Cleargreen 1700 x 750mm Verde 1700 x 800mm - Cleargreen 1700 x 800mm Verde 1800 x 750mm - Cleargreen 1800 x 750mm
Verde 1800 x 800mm - Cleargreen 1800 x 800mm Verde 1800 x 900mm - Cleargreen 1800 x 900mm Verde 1900 x 800mm - Cleargreen 1900 x 800mm
Alternate Text
As Shown
R48 Verde bath
Colour
R48 - bath - Gloss White
Material
R48 - bath - Acrylic
Size
R48 - 1900 x 800 x 415mm
Nett Weight
R48 - bath - 27kg
Gross Weight Including Packaging
R48 - bath - 28kg
Packed Dimension
R48 - 1905 x 805 x 425 = 0.6517 m3
Bath water capacity
142 litres displaced water capacity
Tap Hole Options
0, 1, 2
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 14516:2015+A1:2018
Additional Information
Overflow hole is predrilled
Compatible Products
R29E -    End bath panel 800
CW8 -    Click-clack bath waste
R50F -    Front bath panel 1900
SP231 leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths
Downloads
  • Instructions - PDF - R48 (English)
  • Instructions - PDF - R48 (French)
  • 3D DWG - File - DWG  -  R48 (R48.dwg)
  • 3D DXF - File - DXF  -  R48 (R48.dxf)
  • 3D IGS - File - IGS  -  R48 (R48.igs)
  • 3D RFA BIMM Objects - File - RFA  -  R48 (R48.rfa)
  • Product image 1 - jpg

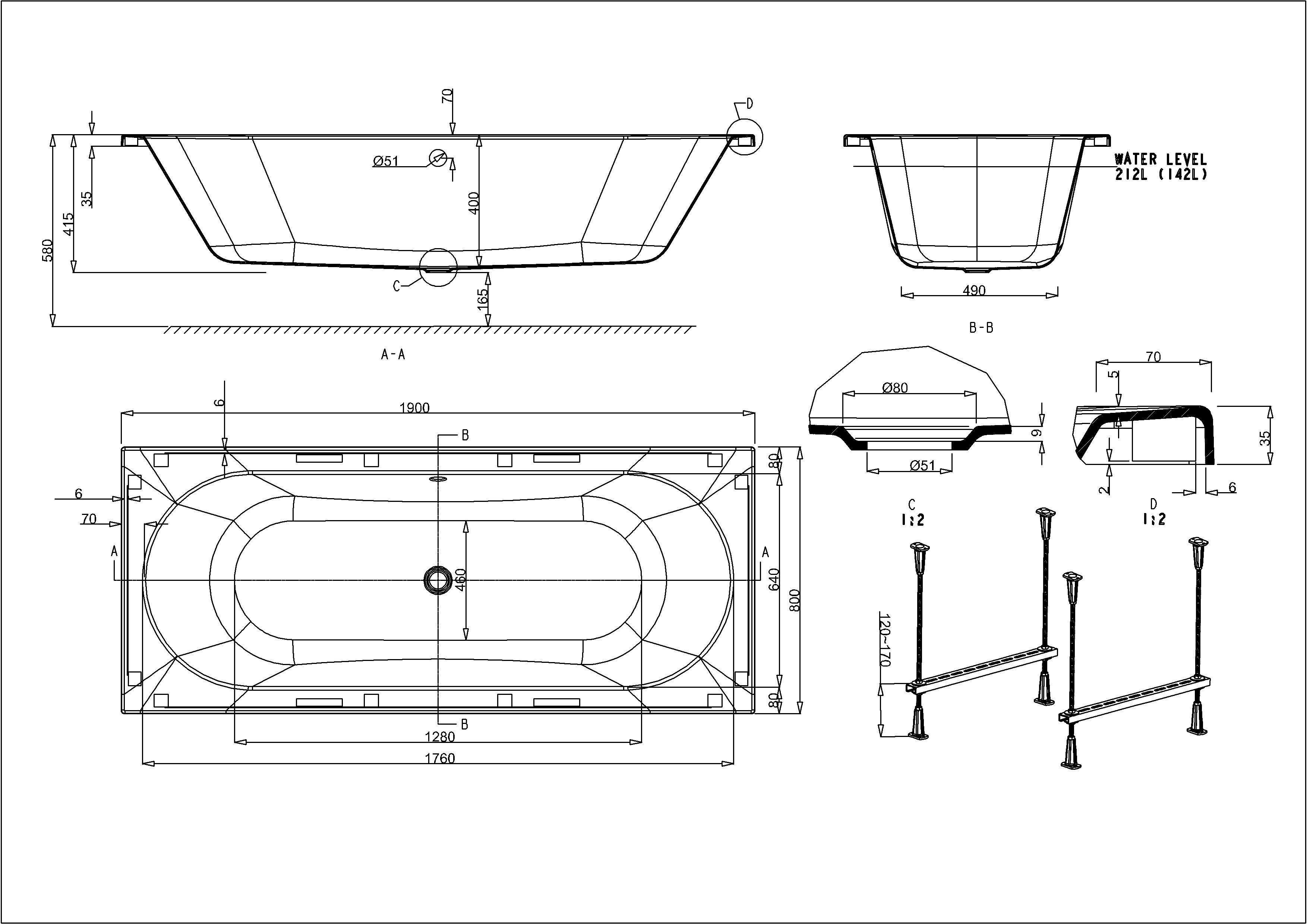

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
