ClearGreen Baths - Verde Baths
asaq2.Model.Web_product_new?.web_name
Product Options
Bath size options
Verde 1600 x 750mm - Cleargreen 1600 x 750mm Verde 1700 x 700mm - Cleargreen 1700 x 700mm Verde 1700 x 750mm - Cleargreen 1700 x 750mm Verde 1700 x 800mm - Cleargreen 1700 x 800mm Verde 1800 x 750mm - Cleargreen 1800 x 750mm
Verde 1800 x 800mm - Cleargreen 1800 x 800mm Verde 1800 x 900mm - Cleargreen 1800 x 900mm Verde 1900 x 800mm - Cleargreen 1900 x 800mm
Alternate Text

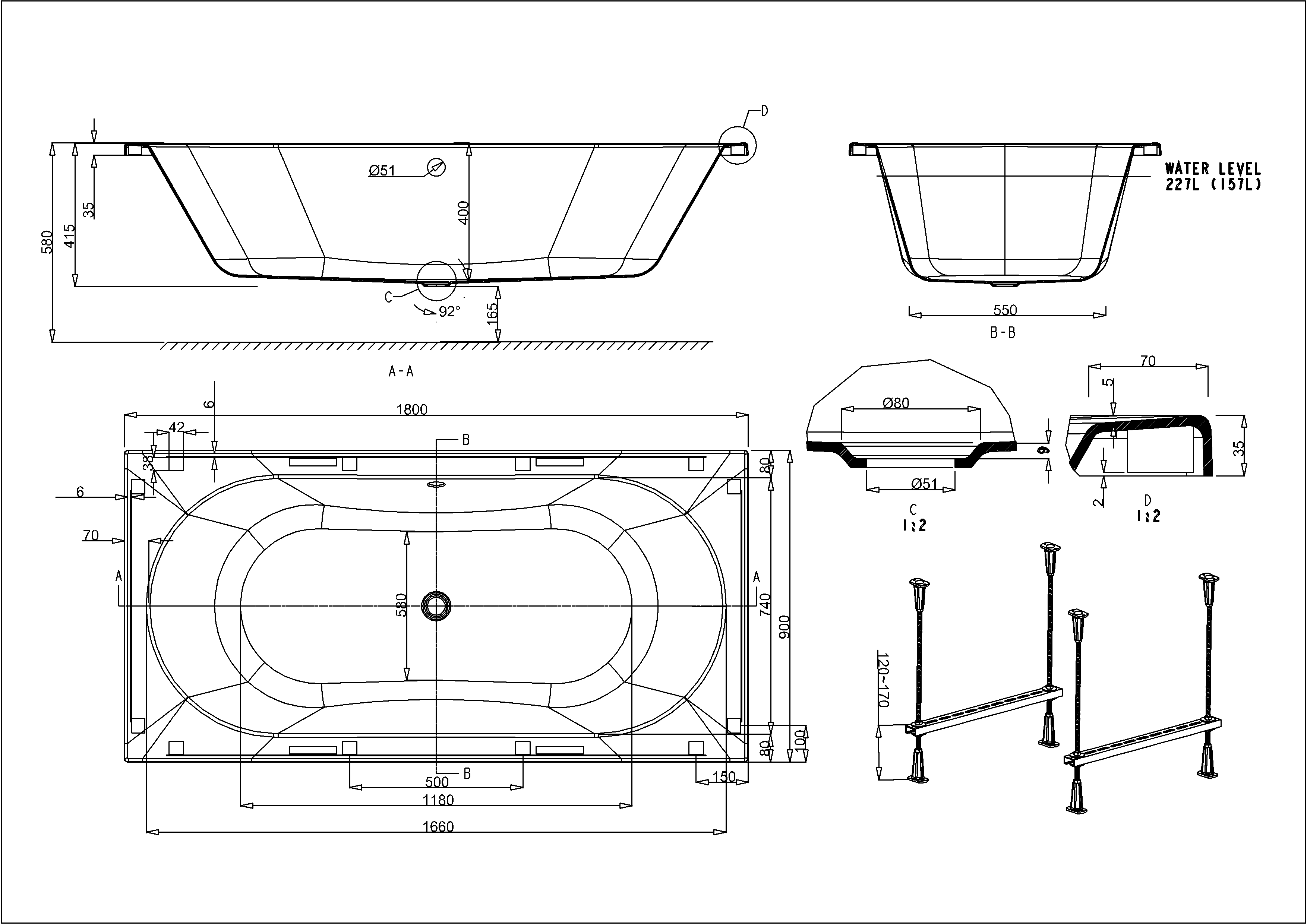

As Shown
R47 −
Bath water capacity
157 litres displaced water capacity
Tap Hole Options
0, 1, 2
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 14516:2015+A1:2018
Additional Information
Overflow hole is predrilled
Compatible Products
R26F -    Front bath panel 1800
CW8 -    Click-clack bath waste
R49E -    End bath panel 900
SP589 leg set for R47
SP1354 the package of R47 (including product label)
Downloads
  • Instructions - PDF - R47 (English)
  • Instructions - PDF - (French)
  • 3D DWG - File - DWG  -  R47 (R47.dwg)
  • 3D DXF - File - DXF  -  R47 (R47.dxf)
  • 3D IGS - File - IGS  -  R47 (R47.igs)
  • 3D RFA BIMM Objects - File - RFA  -  R47 (R47.rfa)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
