Arcade universal seats
Product Options
colour options
handle options
White
|
Gloss black
|
Sand
|
Dark Olive
|
with chrome handle
|
with nickel handle
|
no handle
|
As Shown

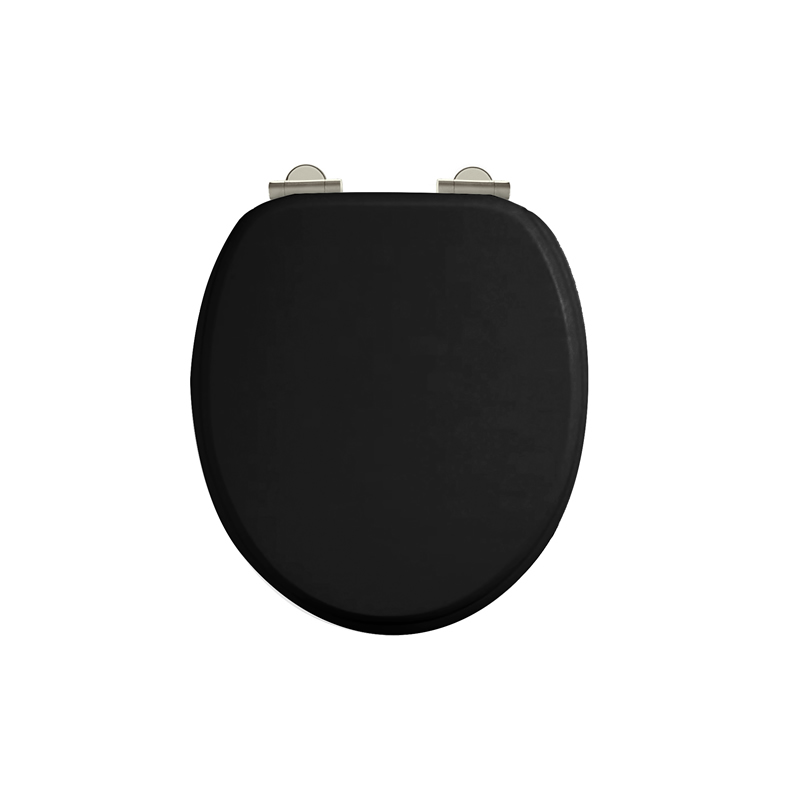

| ARCS40 NKL Arcade gloss black seat soft close - nickel |
| ARCA51 NKL Set of 2 handles with screws & template for Arcade |
Material
| ARCS40 NKL - seat - compress wood particle with a solid wood veneer |
| ARCA51 NKL - handles - Zinc Alloy |
Gross Weight Including Packaging
| ARCS40 NKL - seat - 4.1kg |
| ARCA51 NKL - handles - 0.12kg |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
| SP865 | black buffers for the seat ring & lid for product ARCS40 NKL |
| ARCSP20 | complete set of soft close hinges for Arcade seats - nickel |
Downloads
- Instructions - PDF - ARCS40 NKL (English)
- Instructions - PDF - ARCA51 NKL (English)
- Instructions - PDF - ARCS40 NKL (French)
- Instructions - PDF - ARCA51 NKL (French)
-
2D CAD-File - DWG -
ARCS40 NKL_ARCA51 NKL
(ARCS40 NKL_LD.dwg)
-

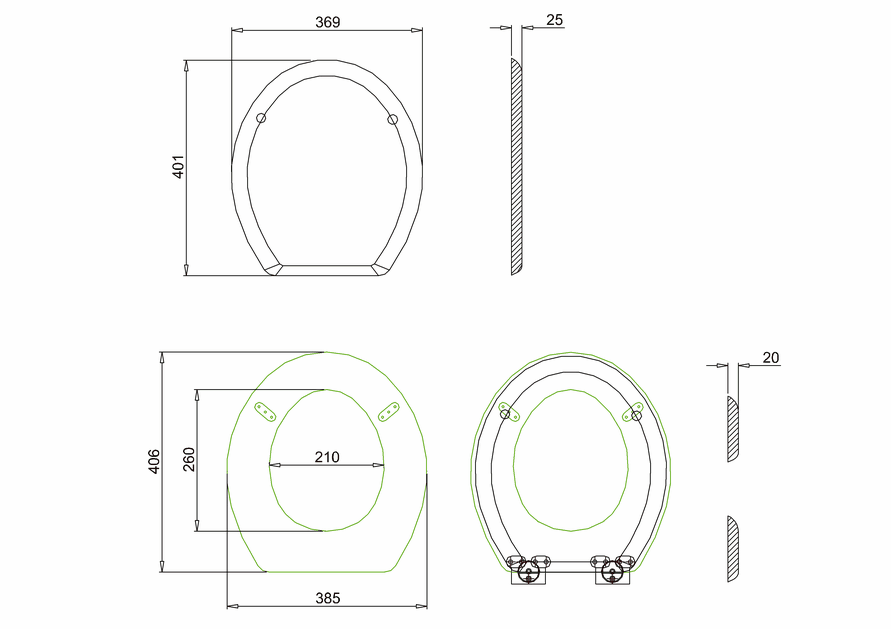

2D Drawing - PDF -
ARCS40 NKL_ARCA51 NKL
(ARCS40 NKL_LD.pdf)
2D Drawing - PDF - ARCS40 NKL_ARCA51 NKL
-
3D DWG - File - DWG
-
ARCS40 NKL_ARCA51 NKL
(2862.dwg)
-
3D DXF - File - DXF
-
ARCS40 NKL_ARCA51 NKL
(2862.dxf)
-
3D IGS - File - IGS
-
ARCS40 NKL_ARCA51 NKL
(2862.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARCS40 NKL_ARCA51 NKL
(2862.rfa)
