Arcade universal seats

asaq2.Model.Web_product_new?.web_name

Product Options

colour options

Arcade White soft-close seat with handle finished in nickel

White

Arcade Gloss black Soft-close seat with handle finished in nickel

Gloss black

Arcade Sand soft-close seat with handle finished in nickel

Sand

Arcade Dark Olive soft-close seat with handle finished in nickel

Dark Olive

handle options

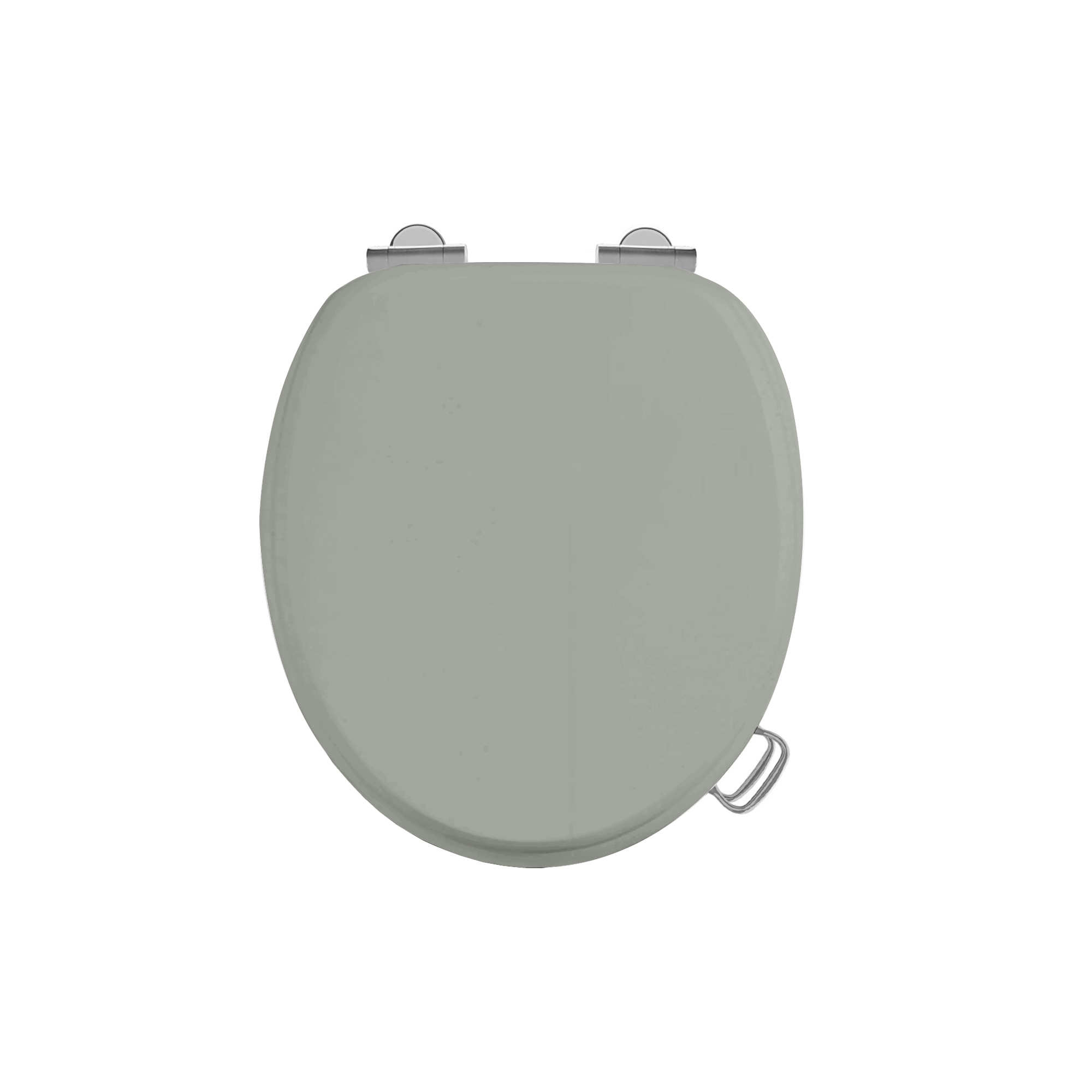

Arcade Dark Olive soft-close seat with handle finished in chrome

with chrome handle

Arcade Dark Olive soft-close seat with handle finished in nickel

with nickel handle

Arcade Dark Olive soft-close seat

no handle

Alternate Text

As Shown

ARCS44 NKL −

ARCA51NKL −

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

N/A

SP1307	arcade seat hinges with screws (pair) - chrome
ARCSP20	complete set of soft close hinges for Arcade seats - nickel
SP866	light gray buffers for the seat ring & lid for S43, S44, ARCS43 NKL, ARCS44 NKL

Downloads

Instructions - PDF - ARCS44 NKL (English)
Instructions - PDF - ARCA51NKL (English)
Instructions - PDF - (French)
Instructions - PDF - (French)

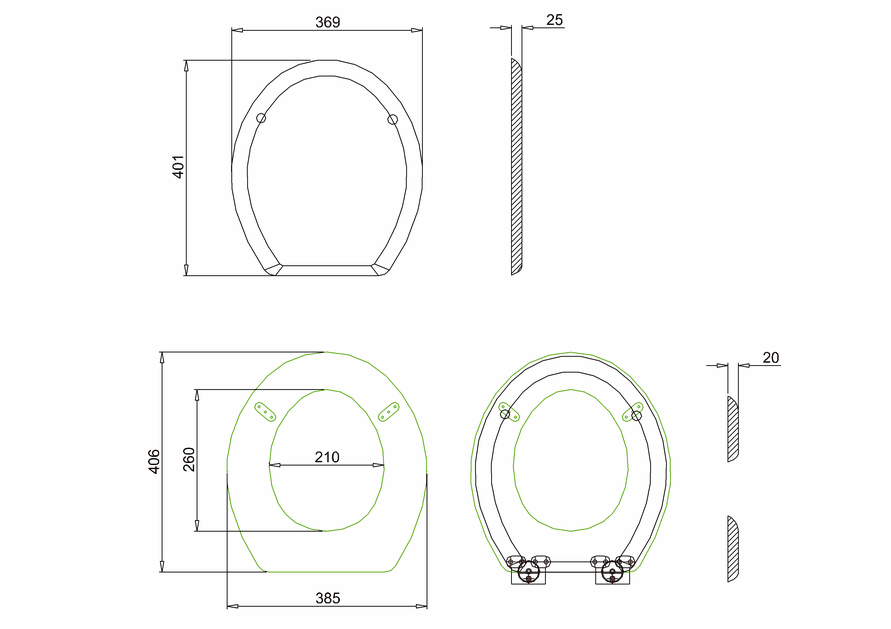

2D CAD-File - DWG - ARCS44 NKL (ARCS44 NKL_LD.dwg)
2D Drawing - PDF - ARCS44 NKL (ARCS44 NKL_LD.pdf) 2D Drawing - PDF - ARCS44 NKL

3D DWG - File - DWG - ARCS44 NKL (2862.dwg)
3D DXF - File - DXF - ARCS44 NKL (2862.dxf)
3D IGS - File - IGS - ARCS44 NKL (2862.igs)
3D RFA BIMM Objects - File - RFA - ARCS44 NKL (2862.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
