Arcade universal seats
Product Options
colour options
handle options
White
|
Gloss black
|
Sand
|
Dark Olive
|

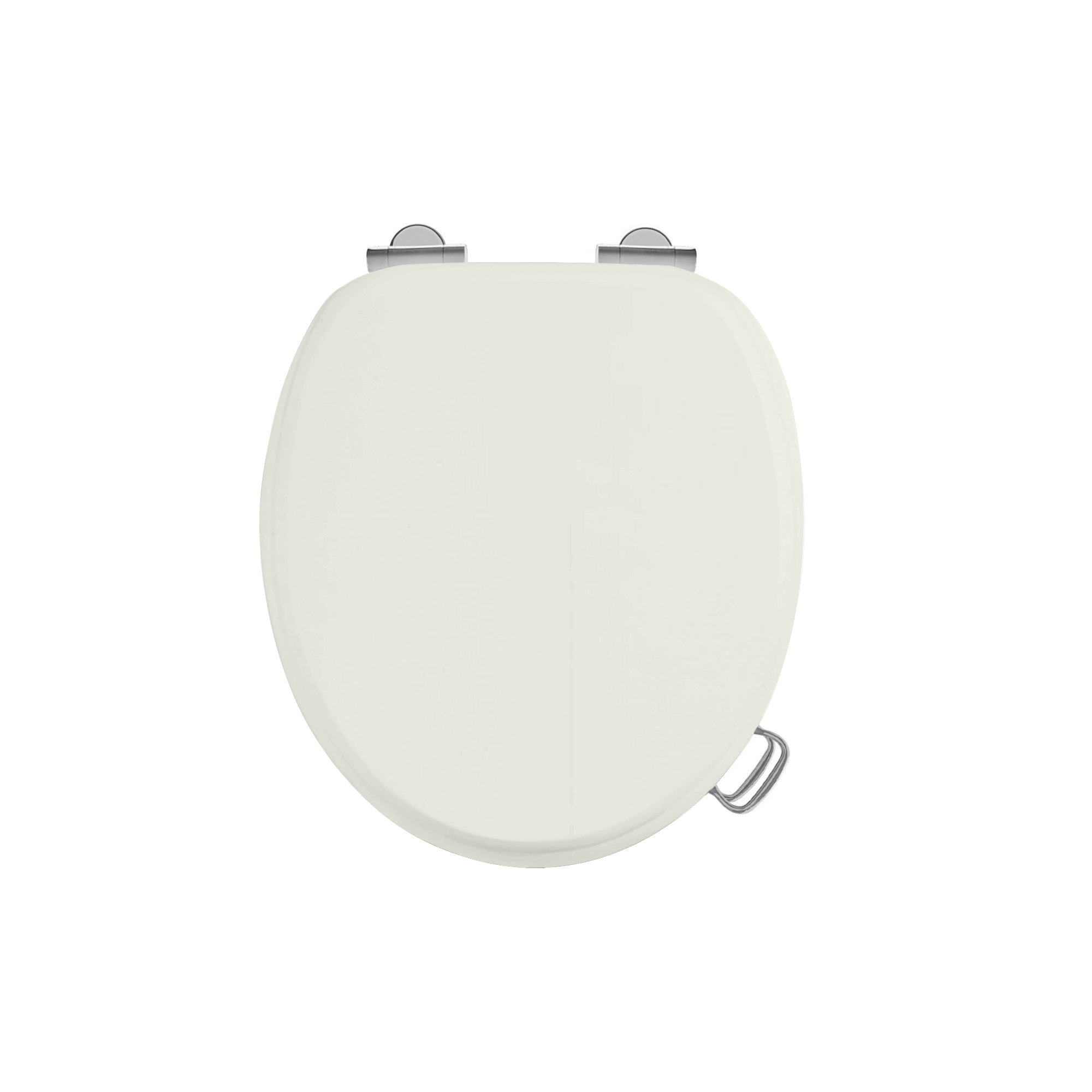

with chrome handle
|
with nickel handle
|
no handle
|
As Shown

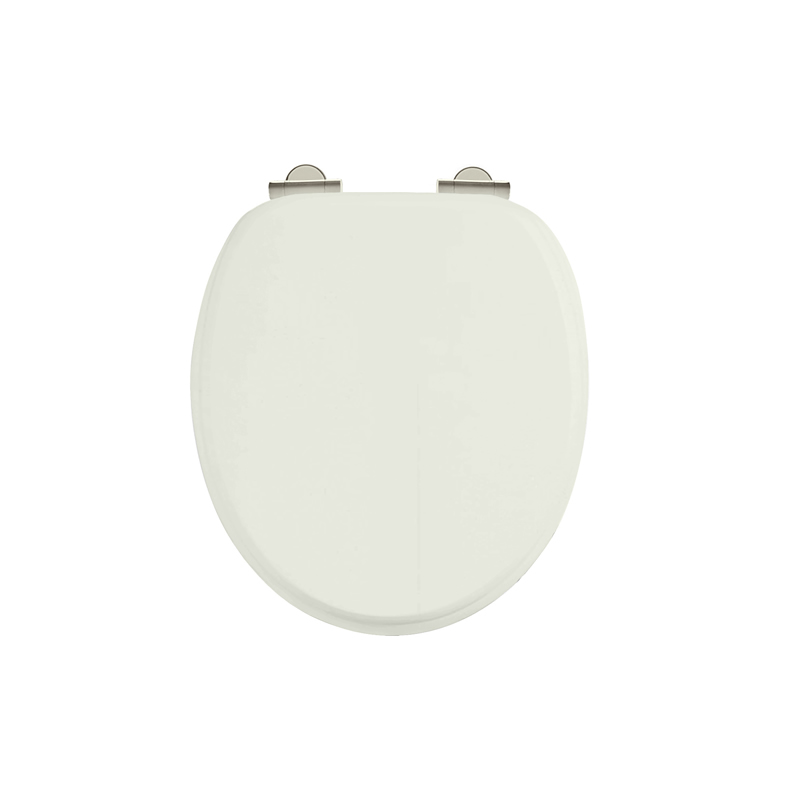

| ARCS43 NKL Arcade sand seat soft close - nickel |
| ARCA51NKL Set of 2 handles with screws & template for Arcade |
Material
| ARCS43 NKL - seat - compress wood particle with a solid wood veneer |
| ARCA51NKL - handles - Zinc Alloy |
Gross Weight Including Packaging
| ARCS43 NKL - seat - 4.3kg |
| ARCA51NKL - handles - 0.12kg |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
| SP1307 | arcade seat hinges with screws (pair) - chrome |
| ARCSP20 | complete set of soft close hinges for Arcade seats - nickel |
| SP866 | light gray buffers for the seat ring & lid for S43, S44, ARCS43 NKL, ARCS44 NKL |
Downloads
- Instructions - PDF - ARCS43 NKL (English)
- Instructions - PDF - ARCA51NKL (English)
- Instructions - PDF - ARCS43 NKL (French)
- Instructions - PDF - ARCA51NKL (French)
-
2D CAD-File - DWG -
ARCS43 NKL
(ARCS43 NKL_LD.dwg)
-

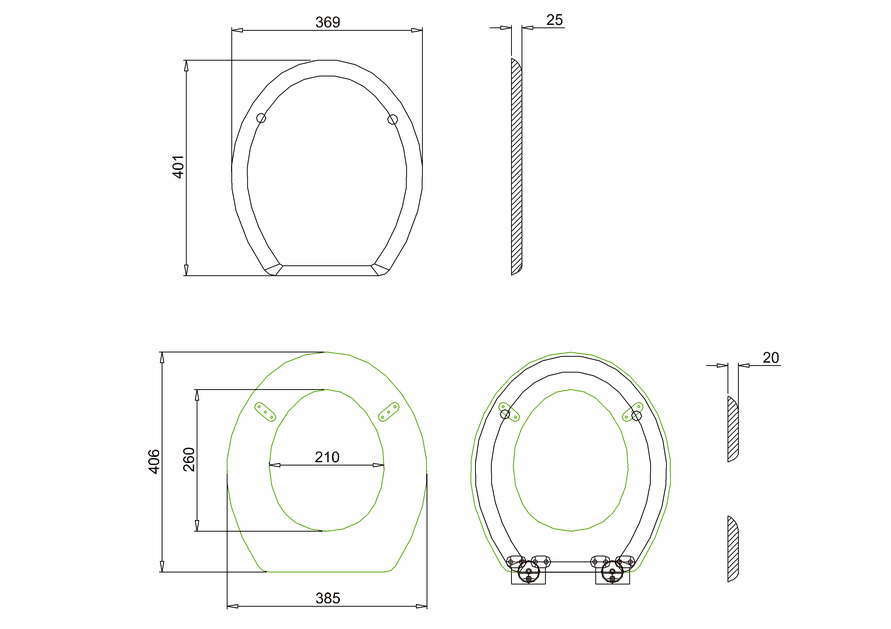

2D Drawing - PDF -
ARCS43 NKL
(ARCS43 NKL_LD.pdf)
2D Drawing - PDF - ARCS43 NKL
-
3D DWG - File - DWG
-
ARCS43 NKL
(2862.dwg)
-
3D DXF - File - DXF
-
ARCS43 NKL
(2862.dxf)
-
3D IGS - File - IGS
-
ARCS43 NKL
(2862.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARCS43 NKL
(2862.rfa)
