Square & Walk-In
| This product is available in multiple options (Click on any option to show details for that option) | |
|---|---|
| Z1158A | Square 700 x 700 shower tray |
| Z1159A | Square 760 x 760 shower tray |
| Z1160A | Square 800 x 800 shower tray |
| Z1161A | Square 900 x 900 shower tray |
| Z1162A | Square 1000 x 1000 shower tray |
| Z1186A | Walk-In 1400 x 900 shower tray |
| Z1187A | Walk-In 1600 x 800 shower tray |
| Z1188A | Walk-In 1700 x 800 shower tray |
As Shown

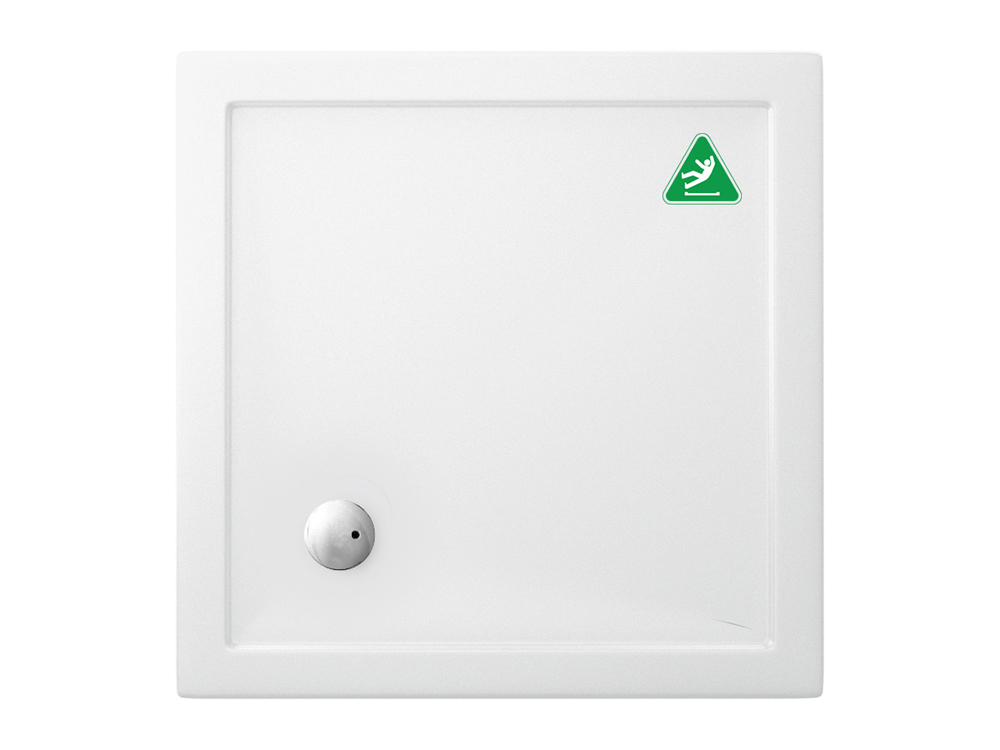

| Z1161A Square 900 x 900 x 35mm tray anti-slip |
| Z1161A - Combined product code |
Colour
| Z1161A - tray - Gloss White |
Material
| Z1161A - tray - Acrylic |
Nett Weight
| Z1161A - tray - 7.9kg |
Gross Weight Including Packaging
| Z1161A - tray - 9.4kg |
Packed Dimension
| Z1161A - 947 x 940 x 40 = 0.0356 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee. |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP1.ZL4 - Panel Pack H |
Downloads
-
2D CAD-File - DWG -
Z1161A
(Z1161A.dwg)
-

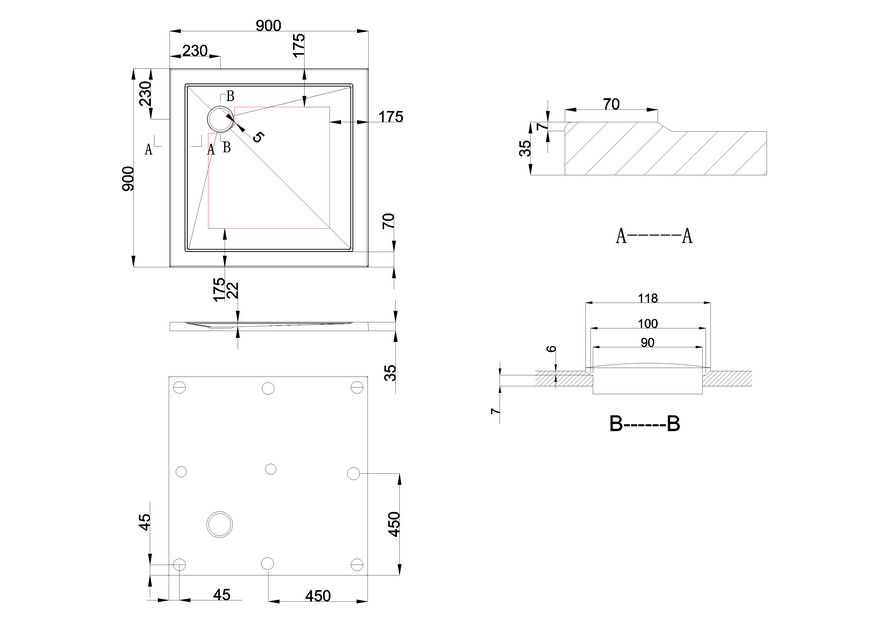

2D Drawing - PDF -
Z1161A
(Z1161A.pdf)
2D Drawing - PDF - Z1161A
-
3D DWG - File - DWG
-
Z1161A
(BSH-9090S.dwg)
-
3D DXF - File - DXF
-
Z1161A
(BSH-9090S.dxf)
-
3D IGS - File - IGS
-
Z1161A
(BSH-9090S.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1161A
(Z1161.rfa)
