Square & Walk-In
| This product is available in multiple options (Click on any option to show details for that option) | |
|---|---|
| Z1158A | Square 700 x 700 shower tray |
| Z1159A | Square 760 x 760 shower tray |
| Z1160A | Square 800 x 800 shower tray |
| Z1161A | Square 900 x 900 shower tray |
| Z1162A | Square 1000 x 1000 shower tray |
| Z1186A | Walk-In 1400 x 900 shower tray |
| Z1187A | Walk-In 1600 x 800 shower tray |
| Z1188A | Walk-In 1700 x 800 shower tray |

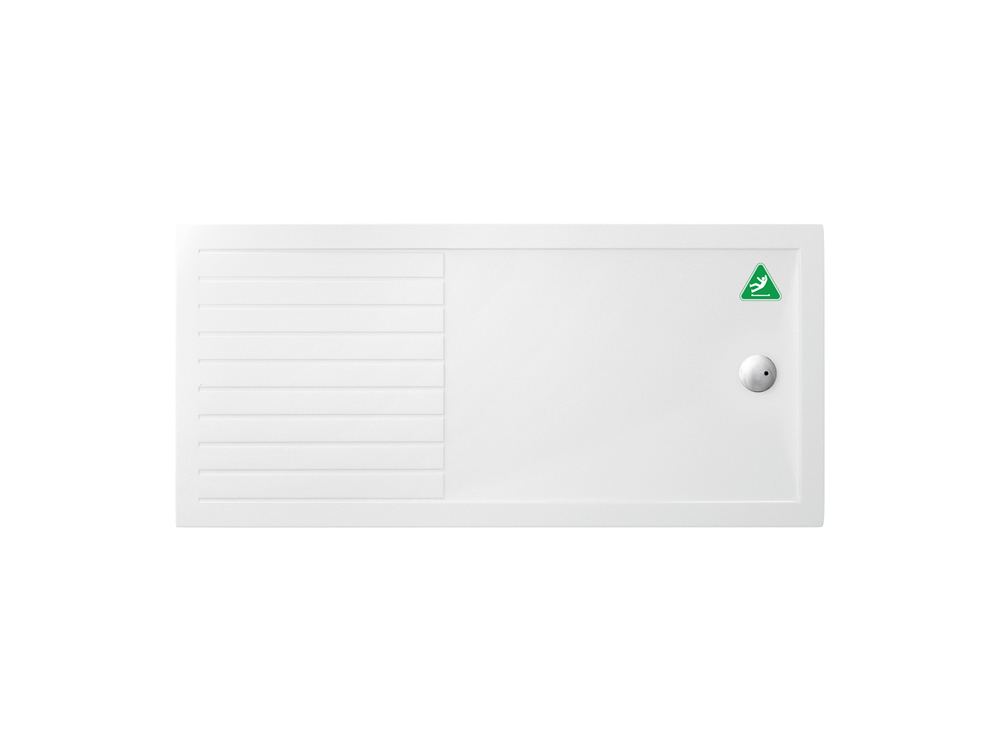

As Shown
| Z1188A − |
| Z1188A - Combined product code |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
This is a shower tray for use with wet area installations. The drying area is part of the wet area and may retain some water depending on shower system and enclosure installation. |
|
It is recommended that on a front panel a return be used to maximize water retention back into the showering area. |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP2.ZL2 - Panel Pack B |
Downloads
-
2D CAD-File - DWG -
Z1188A
(Z1188A.dwg)
-

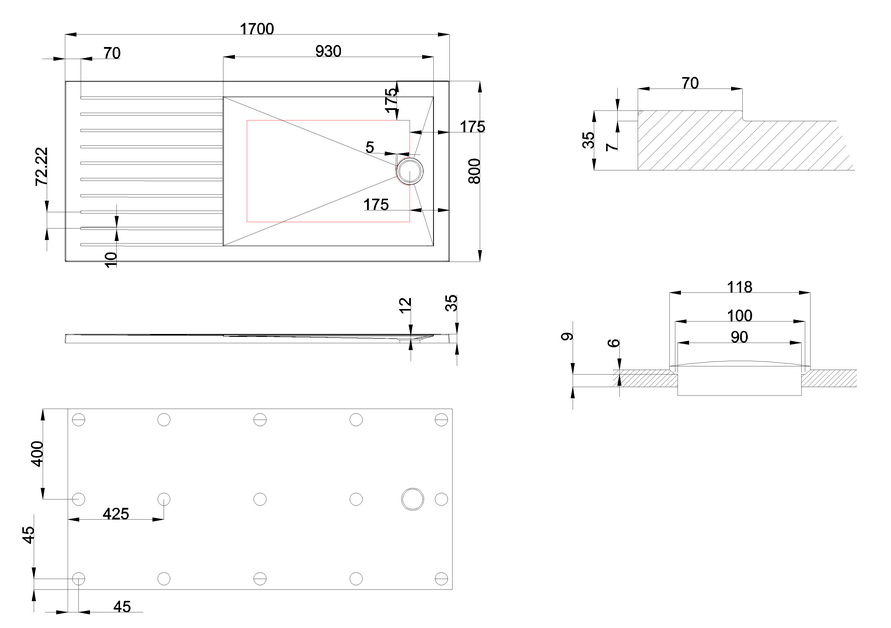

2D Drawing - PDF -
Z1188A
(Z1188A.pdf)
2D Drawing - PDF - Z1188A
-
3D DWG - File - DWG
-
Z1188A
(BSH-1780.dwg)
-
3D DXF - File - DXF
-
Z1188A
(BSH-1780.dxf)
-
3D IGS - File - IGS
-
Z1188A
(BSH-1780.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1188A
(Z1188.rfa)
