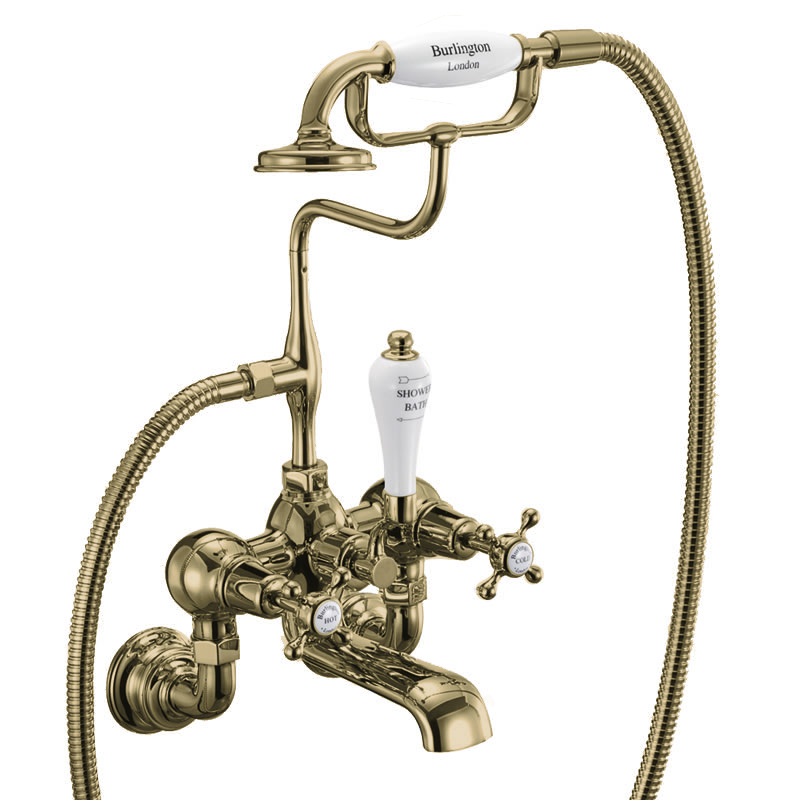

Burlington bath shower mixer wall mounted with S adjuster
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
|
Standard base
|
Regent base
|
|
White
|
As Shown
| T8-QT GOLD Quarter Turn Bath Shower Mixer (Including the standard cradle, 'S' adjuster, ceramic diverter, hose, ceramic telephone handset, excluding tap heads, bases and unions) GOLD |
| T1 GOLD Claremont tap handles (pair) GOLD |
| T17-2 GOLD Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4 -GOLD |
| CL17-QT GOLD - Combined product code |
Colour
| T8-QT GOLD - tap - Polished Gold |
| T1 GOLD - tap handle - Polished Gold |
| T17-2 GOLD - accessories - Polished Gold |
Nett Weight
| T8-QT GOLD - tap - 4.02kg |
| T1 GOLD - tap handle - 0.15kg |
| T17-2 GOLD - accessories - 0.67kg |
Gross Weight Including Packaging
| T8-QT GOLD - tap - 4.76kg |
| T1 GOLD - tap handle - 0.17kg |
| T17-2 GOLD - accessories - 0.82kg |
Packed Dimension
| T8-QT GOLD - 375 x 365 x 215 = 0.0294 m3 |
| T1 GOLD - 60 x 60 x 62 = 0.0002 m3 |
| T17-2 GOLD - 165 x 130 x 60 = 0.0013 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 22 | 22.6 | 25.2 | 27.2 | 29 | n/a | n/a |
| Spout (aerator) | 5.6 | 10.5 | 11.7 | 14.1 | 15.5 | n/a | n/a |
| Handset | 3.68 | 4.48 | 7.55 | 12.53 | 16.23 | n/a | n/a |
| SP1656 | 3, 4 quarter turn COLD cartridge for T8-QT GOLD |
| SP1657 | 3, 4 quarter turn HOT cartridge for T8-QT GOLD |
| V29 GOLD | burlington Ceramic Handset in gold for T8-QT GOLD, AF3S GOLD, TF2S GOLD |
| V26 GOLD | burlington Shower Hose in gold for T8-QT GOLD, AF3S GOLD, TF2S GOLD |
| SP557 GOLD | cradle, handset holder, S adjuster in gold finish for T8-QT GOLD |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1554 | gold finish Bell shape handle part for T27-QT GOLD, T12-QT GOLD, T14-QT GOLD, T5-QT GOLD, T6-QT GOLD, T8-QT GOLD |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
Downloads
- 2D CAD-File - DWG - CL17-QT GOLD (CL17_LD.dwg)
-
2D Drawing - PDF -
CL17-QT GOLD
(CL17_LD.pdf)
2D Drawing - PDF - CL17-QT GOLD
-
3D RFA BIMM Objects - File - RFA
-
CL17-QT GOLD
(T8-wall mounted.rfa)
- 3D IGS - File - IGS - T1 GOLD (T1.igs)
- 3D DWG - File - DWG - T17-2 GOLD (T17-2.dwg)
- 3D DXF - File - DXF - T17-2 GOLD (T17-2.dxf)
- 3D IGS - File - IGS - T17-2 GOLD (T17-2.igs)
- 3D IGS - File - IGS - T8-QT GOLD (T8.igs)
-
