Edwardian Round basin
Product Options
mounting options
pedestal options
with pedestal
|
with pedestal & towel rail
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
standard
|
regal
|

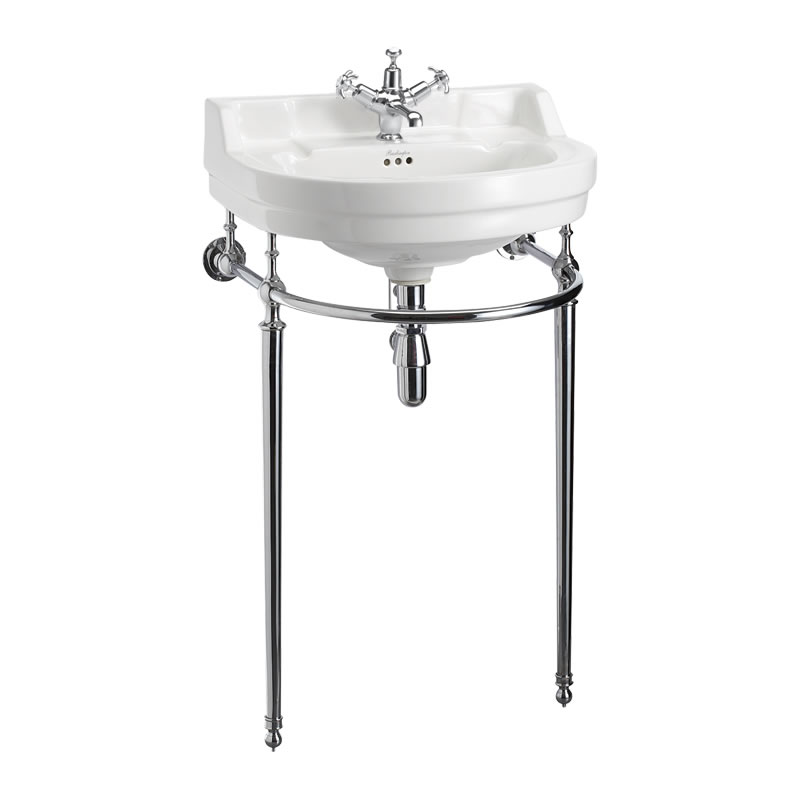

As Shown
| B61TH Edwardian round 56cm basin one tap hole |
| T24ACHR 56cm Round Basin Wash Stand Chrome |
Nett Weight
| B61TH - basin - 16.5kg |
| T24ACHR - wash stand - 3.06kg |
Gross Weight Including Packaging
| B61TH - basin - 18kg |
| T24ACHR - wash stand - 4.02kg |
Packed Dimension
| B61TH - 625 x 520 x 320 = 0.104 m3 |
| T24ACHR - 730 x 565 x 125 = 0.0516 m3 |
Tap Hole Options
| Available with one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B6 1TH T24A CHR
(B6 1TH_T24A CHR_20201202.dwg)
-

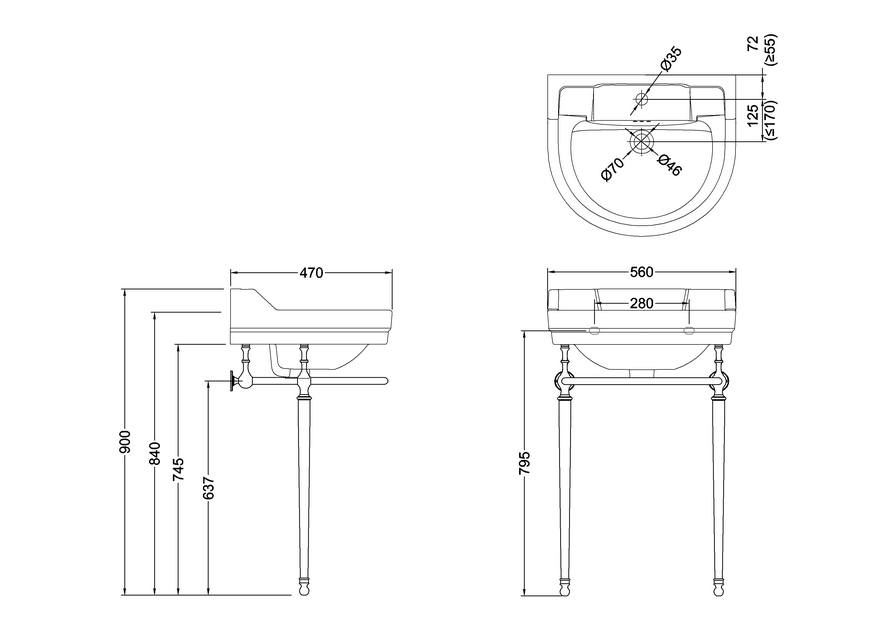

2D Drawing - PDF -
B6 1TH T24A CHR
(B6 1TH_T24A CHR_20201202.pdf)
2D Drawing - PDF - B6 1TH T24A CHR
-
3D DWG - File - DWG
-
B6 1TH T24A CHR
(2685.dwg)
-
3D DXF - File - DXF
-
B6 1TH T24A CHR
(2685.dxf)
-
3D IGS - File - IGS
-
B6 1TH T24A CHR
(2685.igs)
-
3D RFA BIMM Objects - File - RFA
-
B6 1TH T24A CHR
(2685.rfa)
