Hampton right handed bath - 170cm with standard legs
asaq2.Model.Web_product_new?.web_name
Classical legs
Alternate Text
Chrome
Alternate Text
White
Alternate Text
Black
Period legs
Alternate Text
Chrome
Alternate Text
White
Alternate Text
Black
Traditional legs
Alternate Text
White
Alternate Text
Black
Alternate Text
Chrome

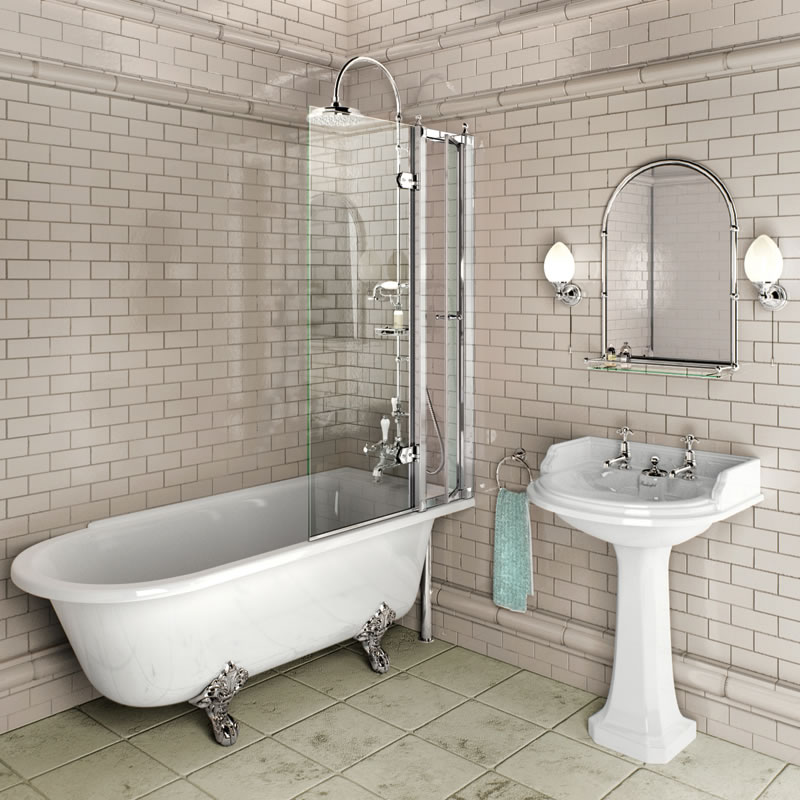

As Shown
E14 Hampton shower bath (right)
E11 CHR Traditional leg set
Gross Weight Including Packaging
E14 - bath - 48.5kg
E11 CHR - legs - 3.9kg
Tap Hole Options
0,1,2
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
E14  -  WRAS Not Applicable
E11 CHR  -  WRAS Not Applicable
BS EN 14516:2015+A1:2018
Additional Information
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner.
Supplied left or right handed.
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required.
Compatible Products
W4 -    Exposed bath overflow, plug & chain
CW3 -    P-trap
W21 -    P-trap connection pipe
CW2 -    Click-clack bath waste unslotted with chrome cover
CW6 -    Exposed bath overflow, click-clack waste
SP25 spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11)
