Arcade single-lever bidet mixer with pop up waste
asaq2.Model.Web_product_new?.web_name
Product Options
Finish options

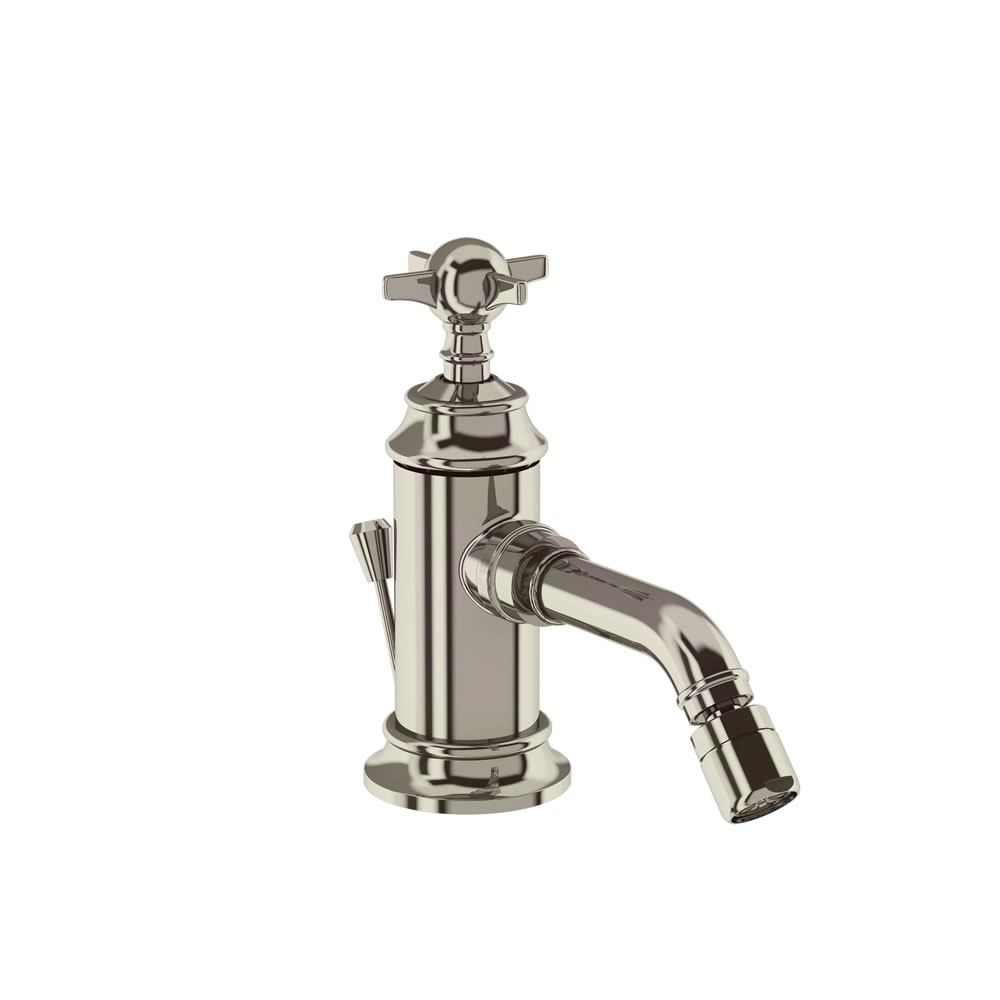

Arcade Single-single lever bidet mixer with pop up waste chrome Chrome Arcade Single-lever bidet mixer with pop up waste nickel Nickel
Handle options

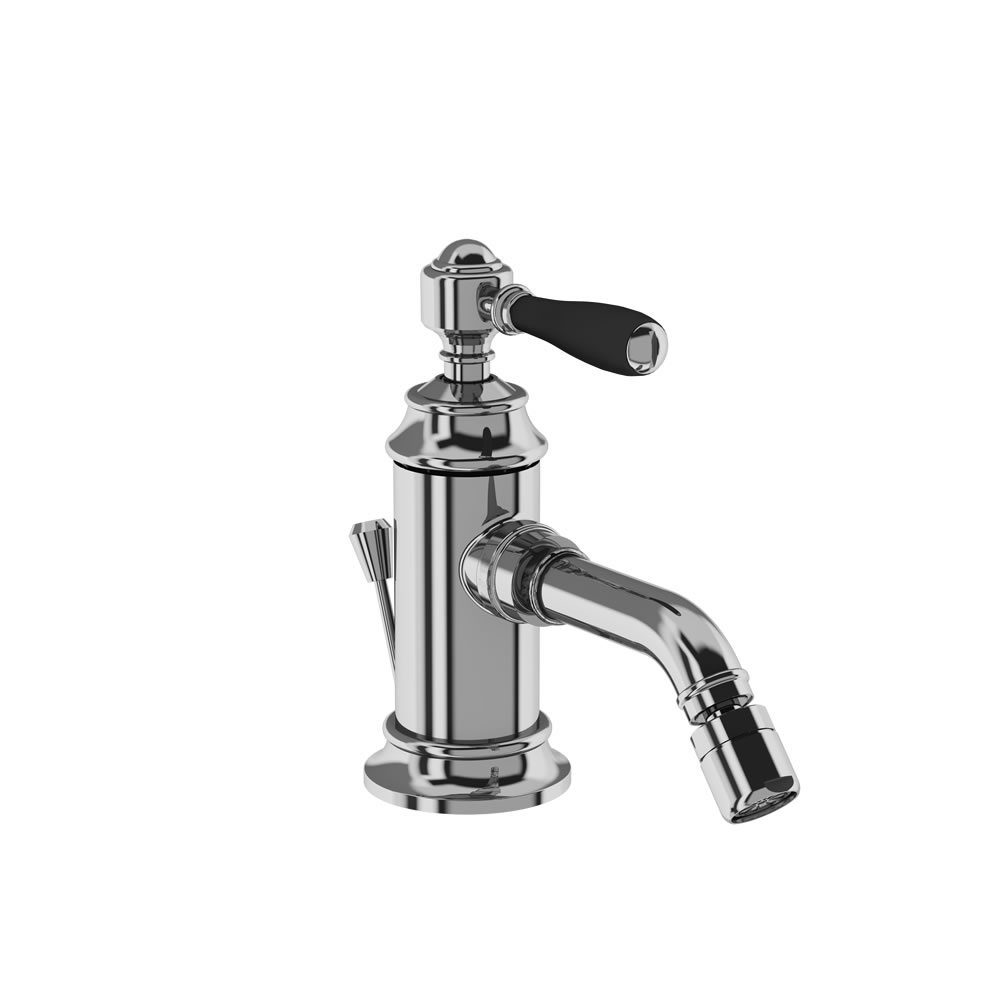

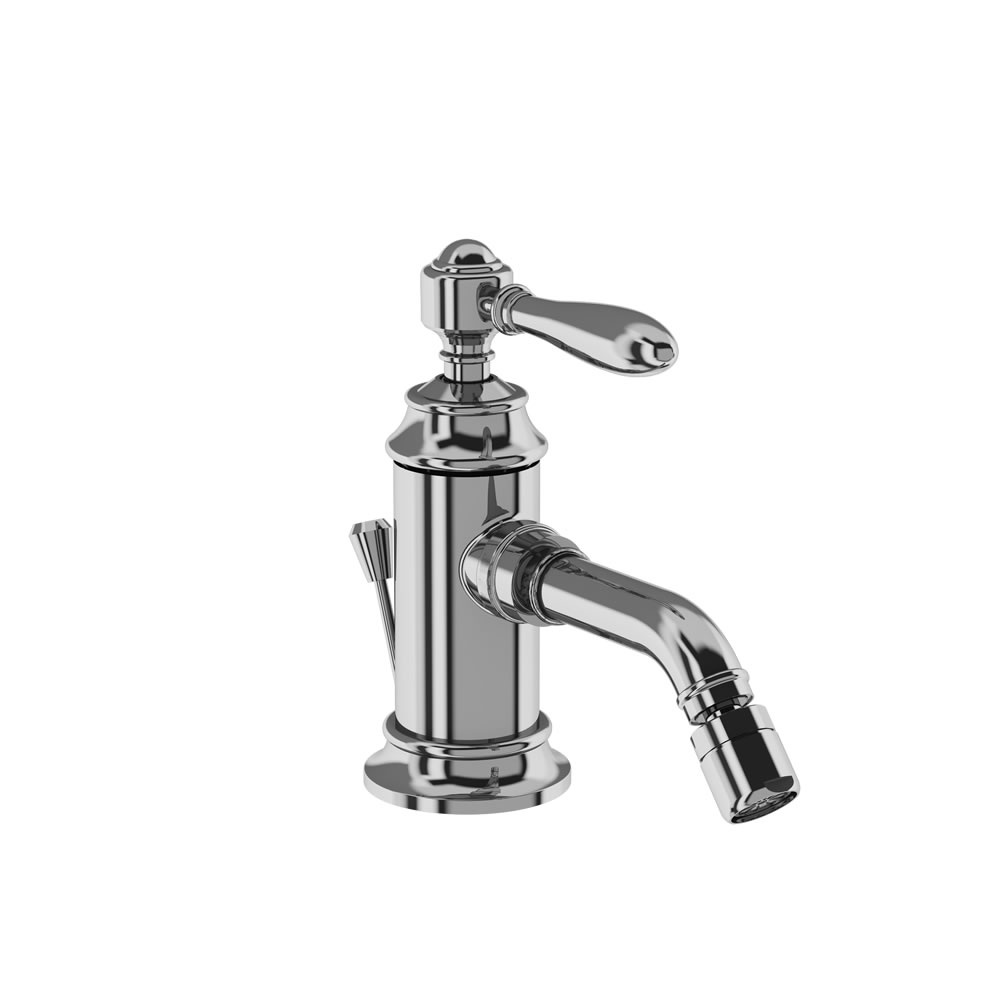

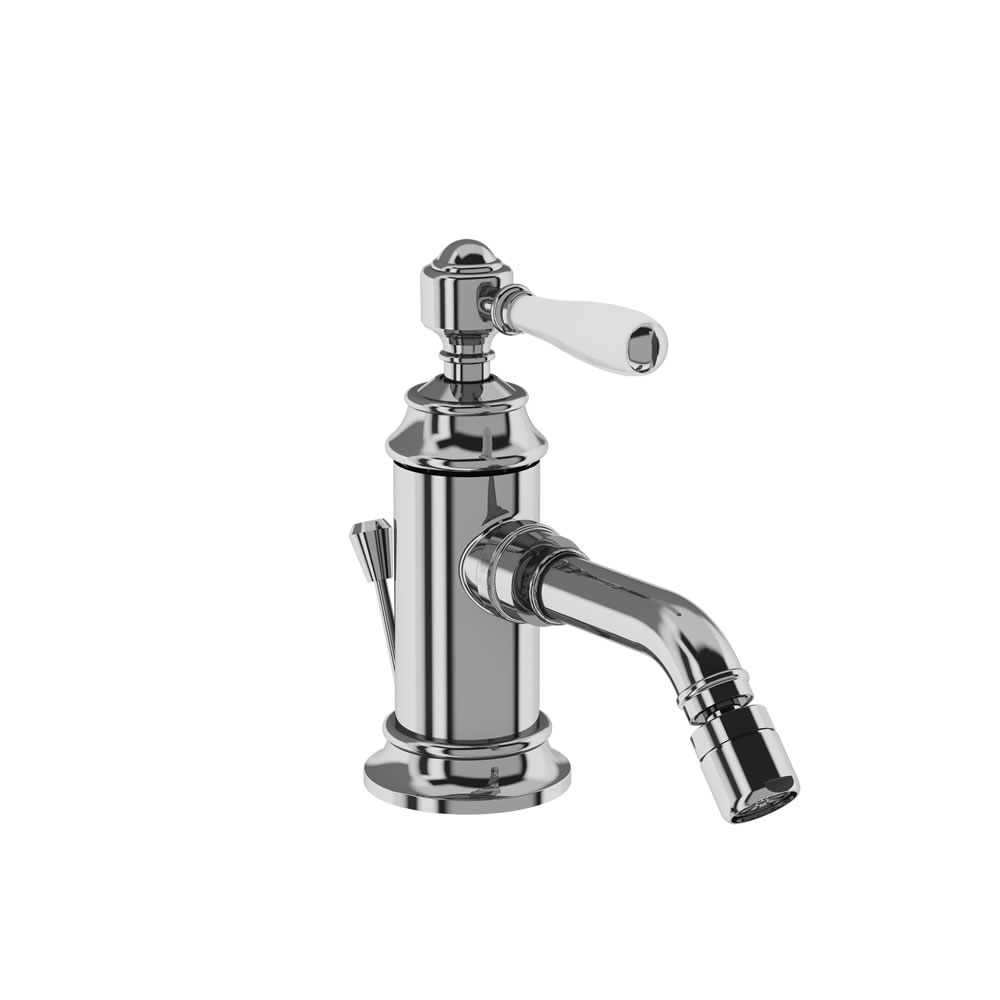

Arcade Single-single lever bidet mixer with pop up waste chrome crosshead handle Arcade Single-brass lever bidet mixer with pop up waste chrome brass lever Arcade Single- ceramic lever bidet mixer with pop up waste chrome white ceramic lever Arcade Single-black lever bidet mixer with pop up waste chrome gloss black ceramic lever
Alternate Text
As Shown
ARC 2013 CHR Arcade single lever bidet mixer with pop up waste - chrome
ARCHLC Crosshead handle (pair) for ARCADE 2012,2013,2018,2019 - chrome, 64*64mm
ACL13C  -  Combined product code
Colour
ARC 2013 CHR - tap - Polished Chrome
ARCHLC - handle - Polished Chrome
Material
ARC 2013 CHR - tap - Brass
ARCHLC - handle - Brass
Size
ARC 2013 CHR - 174.5 x 65 x 176mm
ARCHLC - 64 x 64 x 48.5mm
Nett Weight
ARC 2013 CHR - tap - 1.6kg
ARCHLC - handle - 0.27kg
Gross Weight Including Packaging
ARC 2013 CHR - tap - 1.9kg
ARCHLC - handle - 0.33kg
Packed Dimension
ARC 2013 CHR - 285 x 235 x 72 = 0.0048 m3
ARCHLC - 120 x 65 x 50 = 0.0004 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Flow Straighter 3.31  7.12  11.17  16.01  20.16  23.65  26.36
Aerator 2.97  5.14  7.92  11.33  14.33  16.81  18.52
ARCSP151 CHR chrome finish aerator nozzle for ARC 2013 CHR, ARC13 CHR
ARCSP152 CHR chrome finish flow straightener nozzle for ARC 2013 CHR, ARC13 CHR
ARCSP167 CHR chrome finish Pop up waste for ARC 2013 CHR, ARC13 CHR
SP1769 handle base set in chrome for product ARC 2012 CHR, ARC 2013 CHR
SP1491 screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR)
Downloads
  • Instructions - PDF - ARC 2013 CHR (English)
  • Instructions - PDF - ARCHLC (English)
  • Instructions - PDF - ARCHLC (French)
  • Instructions - PDF - ARC 2013 CHR (French)
  • 3D RFA BIMM Objects - File - RFA  -  ACL13C (ACL13C.rfa)
  • 3D IGS - File - IGS - ARCHLC (ARCHLC.igs)
  • 3D STP - File - STP - ARC 2013 CHR (ARC2013.stp)
  • Lifestyle image 1 -
    jpg
  • Lifestyle image 2 -
    jpg
  • Product image 1 - jpg

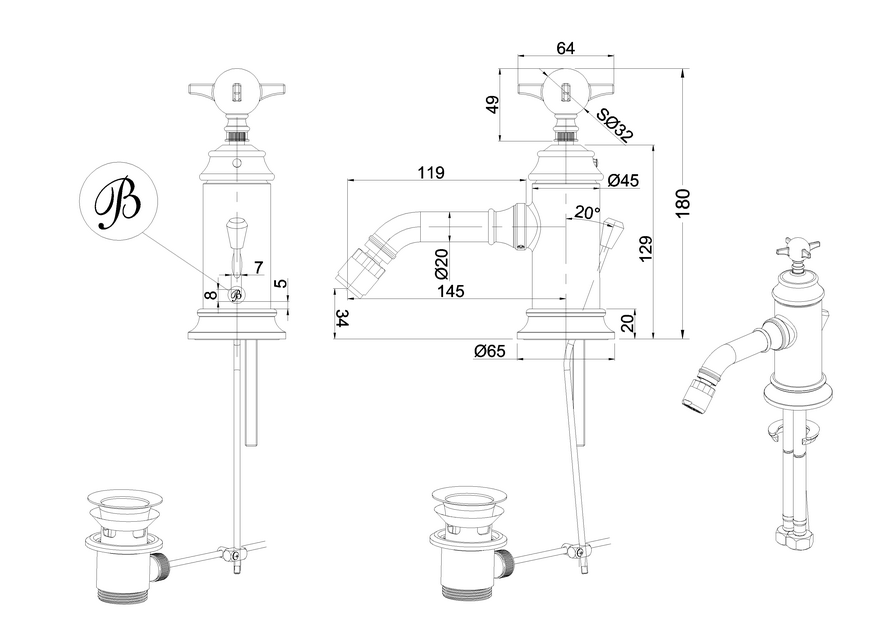

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
