Bloomsbury radiator
asaq2.Model.Web_product_new?.web_name
Product Options
Radiator Options

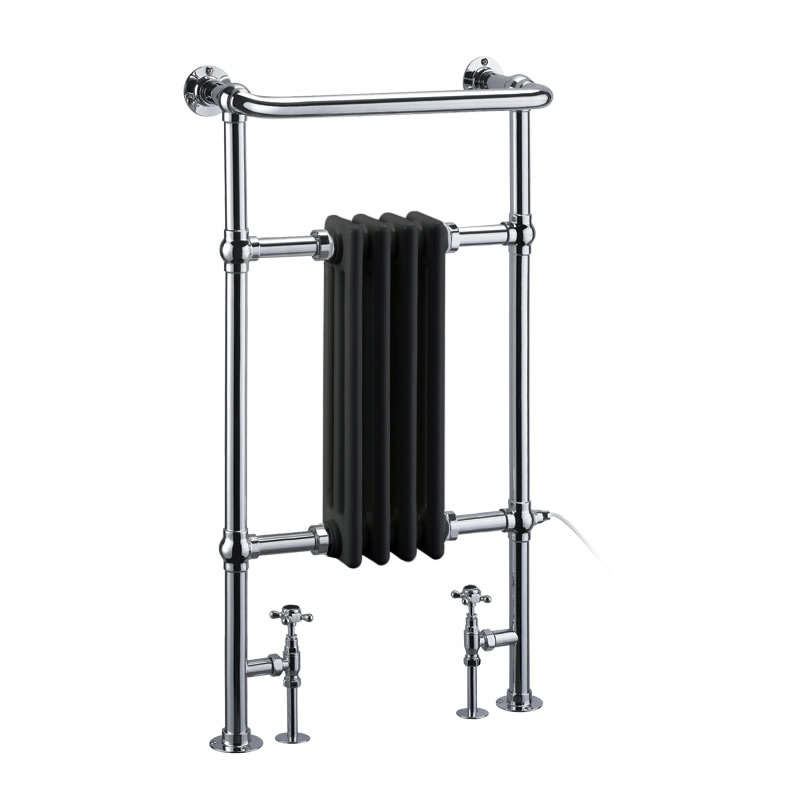

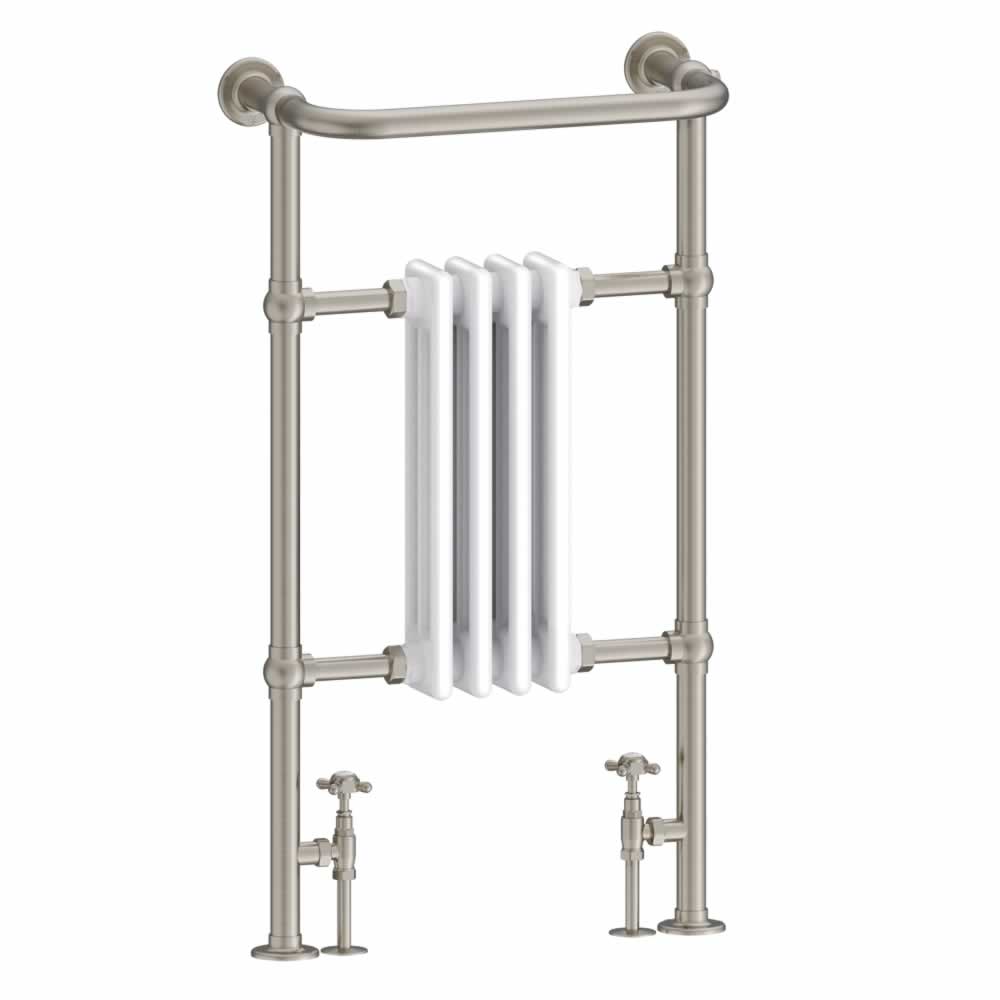

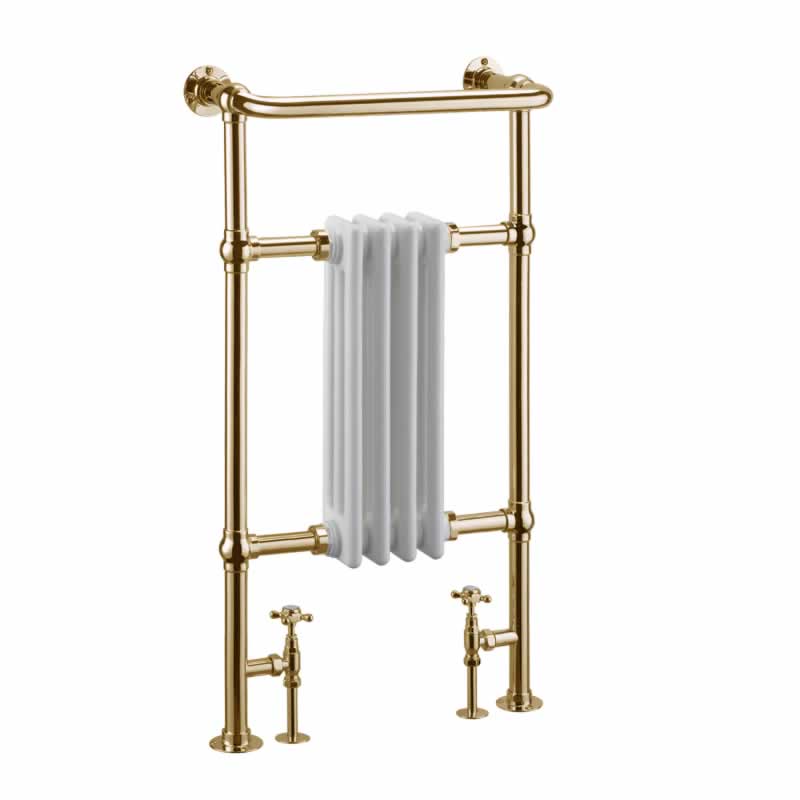

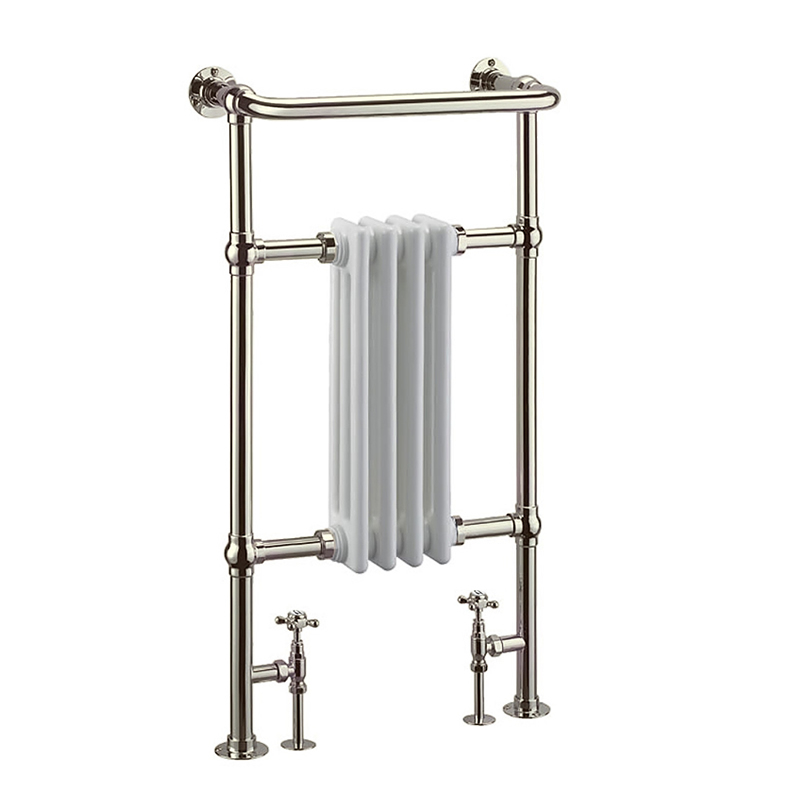

Bloomsbury radiator White & Chrome Bloomsbury radiator Chrome with Black Insert Black & Chrome Arcade Bruton with angled radiator valve White & Nickel Bloomsbury Gold / White White & Gold Bloomsbury Brushed Nickel / White White & Brushed Nickel
Alternate Text
As Shown

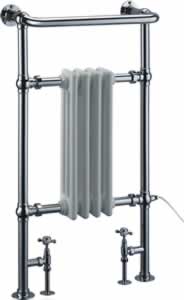

R2CHR Bloomsbury
shown with the summer heating kit
Gross Weight Including Packaging
R2CHR - radiator - 16.25kg
Guarantee
5 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 442-1:2015
BS EN 442-2:2015
BS EN 248:2002
Additional Information

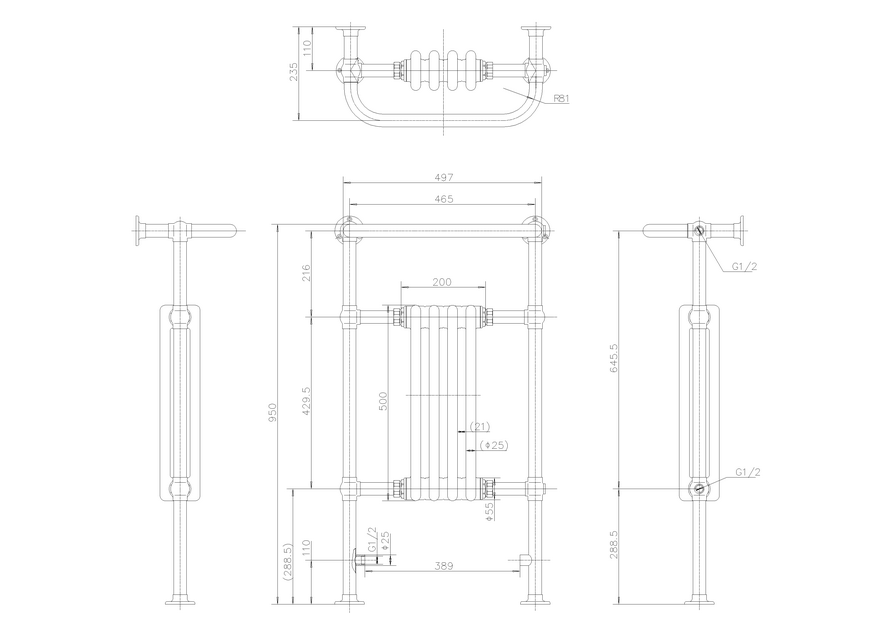

320mm plumbing pipe centers
Distance from wall to the rail is 110mm.
for technical information on the summer heating kit please refer to the summer heating kit section
Fill the radiator approximately 90% (4.5L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system)
Includes all brackets and fixings.
High quality chrome plated finish.
Output:1518 BTUs/356 watts (△T=50℃)
Valves are required. These are not included.
Diameter of tubes is 32mm.
Designed to be plumbed into your central heating system.
Operating pressure up to 8 bar.(Certified by BEN N.L)
Maximum working temperature:95℃
Compatible Products
R6 CHR -    Angled radiator valves chrome
BUR10 -    300W Summer electric heating kit for Trafalgar
SP801 air valve for Burlington radiators
SP621 black washer for R1 CHR, R2 CHR, R1 CHR BLA, R2 CHR BLA, R1 GOLD, R2 GOLD
SP519 complete packaging for R2 CHR
SP137 complete set of brackets, fixings for R1 CHR, R2 CHR, R4 CHR
