Arcade single-lever basin mixer without pop up waste
asaq2.Model.Web_product_new?.web_name
Product Options
finish options

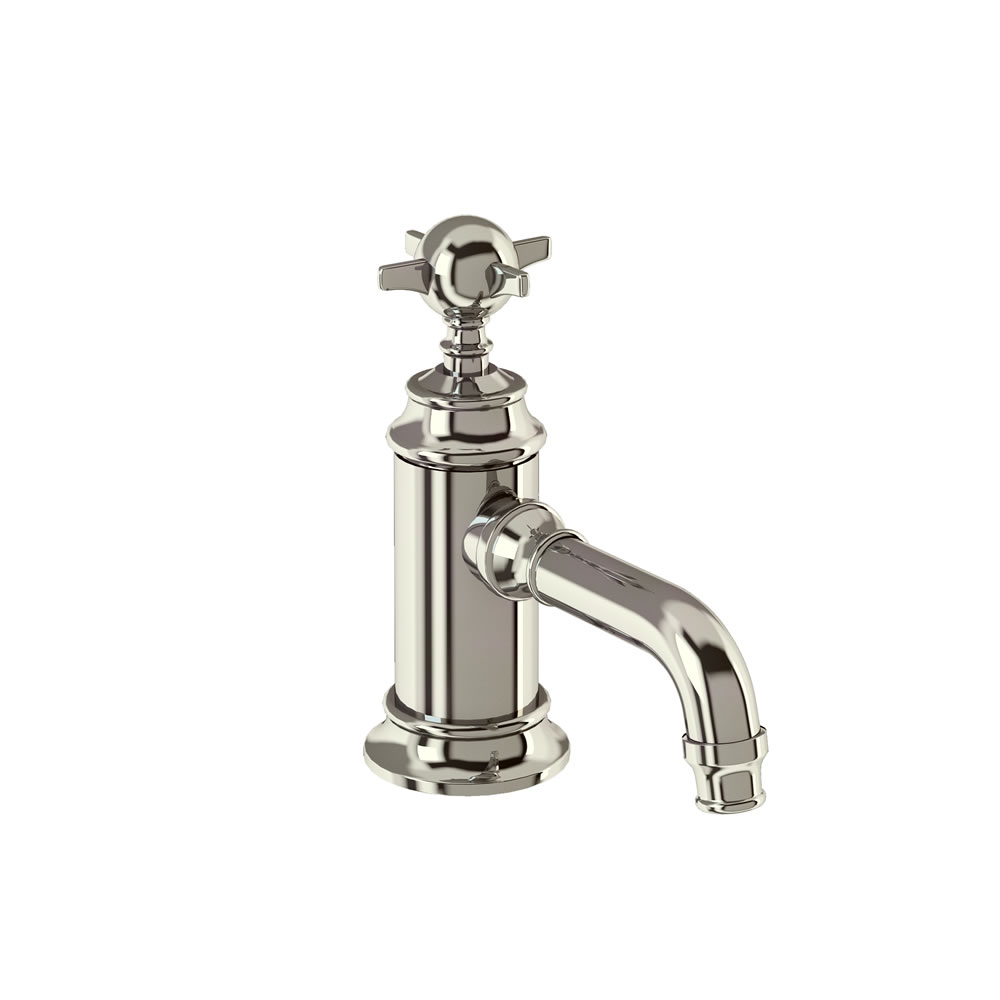

Arcade Single-lever basin mixer without pop up waste - chrome - with tap handle chrome Arcade Single-lever basin mixer without pop up waste - nickel - with tap handle nickel
handle options

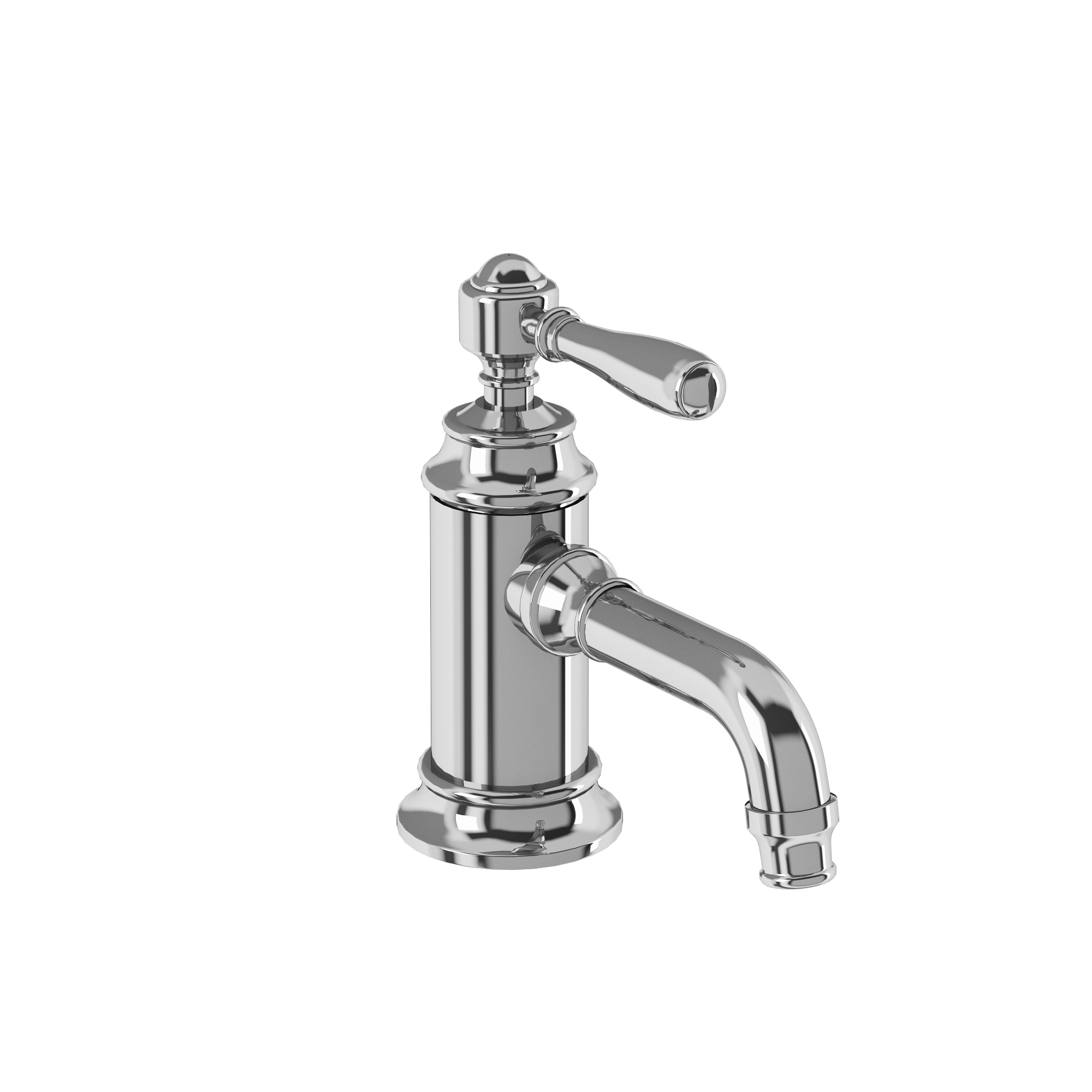

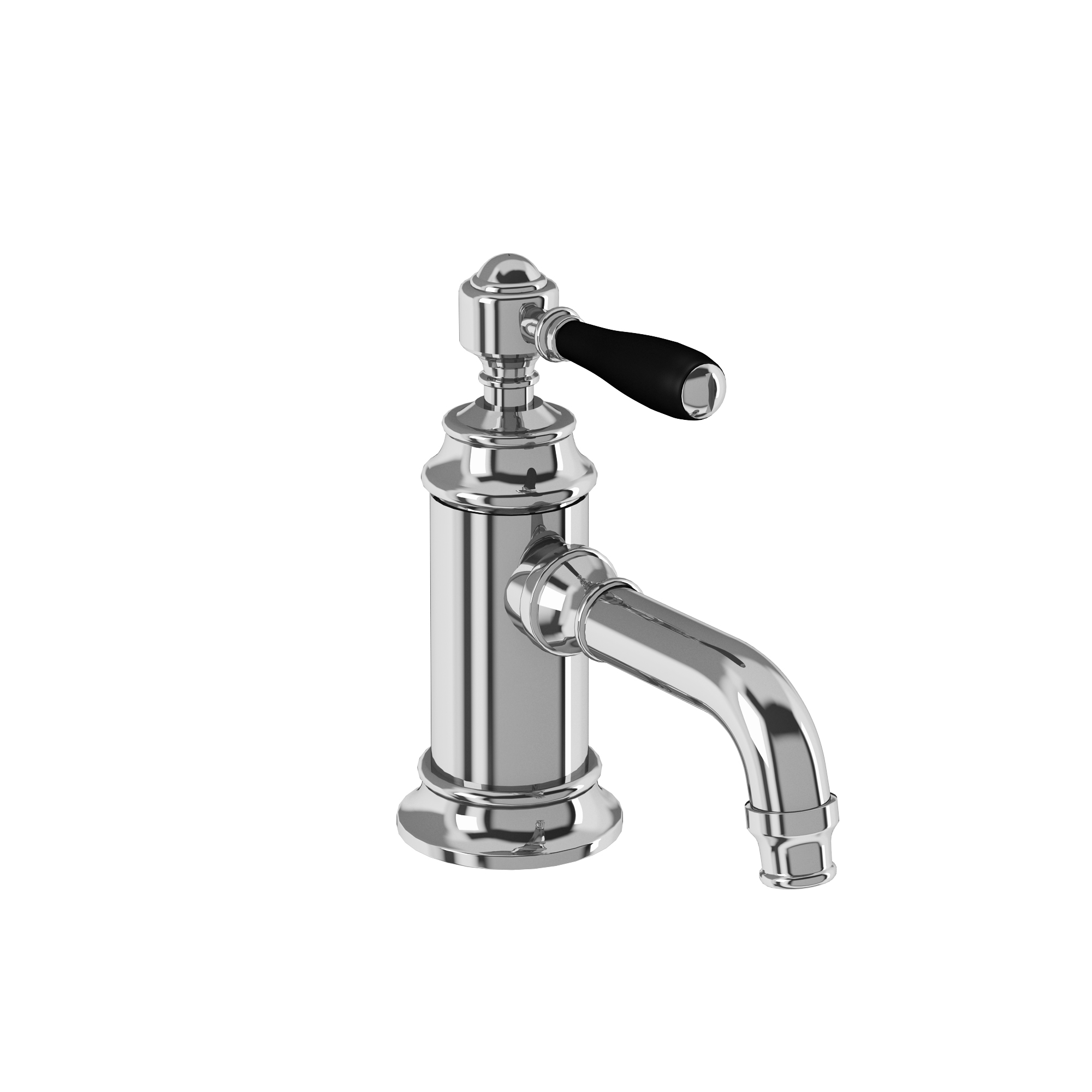

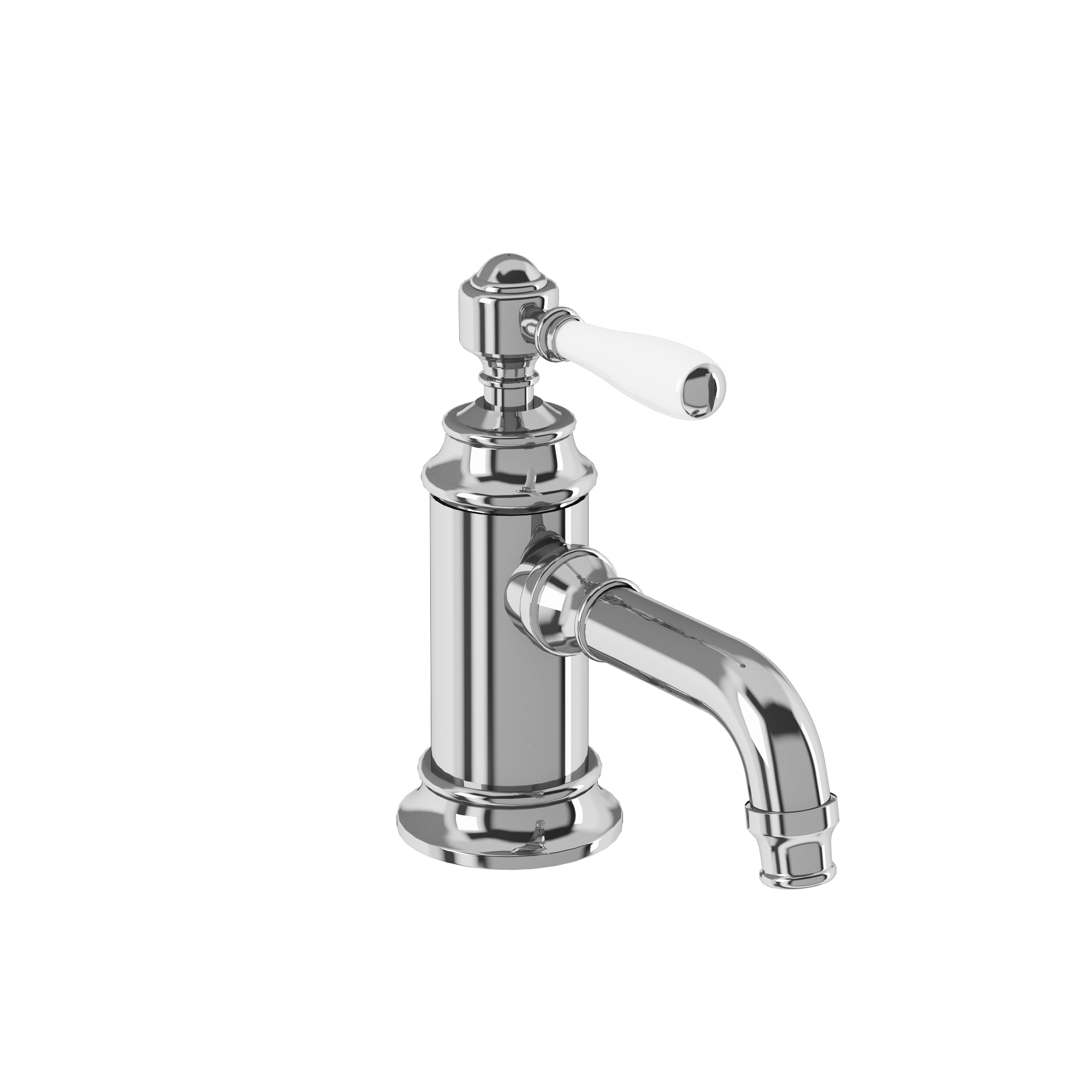

Arcade Single-lever basin mixer without pop up waste - chrome - with tap handle crosshead handle Arcade Single-lever basin mixer without pop up waste - chrome - with brass lever brass lever Arcade Single-lever basin mixer without pop up waste - chrome - with ceramic lever white ceramic lever Arcade Single-lever basin mixer without pop up waste - chrome - with black lever gloss black ceramic lever
Alternate Text
As Shown
ARC 2012 CHR Arcade single lever basin mixer without pop up waste - chrome
ARCHLC Crosshead handle (pair) for ARCADE 2012,2013,2018,2019 - chrome, 64*64mm
ACL12C  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Aerator 2.83  4.9  7.56  10.83  13.61  15.5  17.56
Flow Straighter 4.51  8.34  12.18  17.9  22.26  25.75  29.13
ARCSP140 CHR chrome finish Crosshead handle (single piece) for Arcade basin taps(ARC12 CHR, ARC2012 CHR) and Arcade bath tap(ARC2018 CHR, ARC18 CHR, ARC2019 CHR, ARC19 CHR)
ARCSP182 flow straightener for Arcade Basin taps
SP1769 handle base set in chrome for product ARC 2012 CHR, ARC 2013 CHR
SP1491 screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR)
