Large Rectangle
asaq2.Model.Web_product_new?.web_name
This product is available in multiple options (Click on any option to show details for that option)
Z1179A Rectangle 1500 x 700 shower tray
Z1180A Rectangle 1500 x 760 shower tray
Z1181A Rectangle 1500 x 800 shower tray
Z1361A Rectangle 1500 x 900 shower tray
Z1182A Rectangle 1600 x 700 shower tray
Z1231A Rectangle 1600 x 800 shower tray
Z1232A Rectangle 1600 x 900 shower tray
Z1183A Rectangle 1700 x 700 shower tray
Z1184A Rectangle 1700 x 760 shower tray
Z1185A Rectangle 1700 x 800 shower tray
Z1341A Rectangle 1700 x 900 shower tray
Z1342A Rectangle 1700 x 1000 shower tray
Z1343A Rectangle 1800 x 800 shower tray
Z1245A Rectangle 1800 x 900 shower tray
Z1344A Rectangle 1800 x 1000 shower tray
Z1345A Rectangle 2000 x 800 shower tray
Z1346A Rectangle 2000 x 900 shower tray
Z1347A Rectangle 2000 x 1000 shower tray
As Shown
Z1180A Rectangle 1500 x 760 x 35mm tray anti-slip
Z1180A  -  Combined product code
Colour
Z1180A - tray - Gloss White
Material
Z1180A - tray - Acrylic
Size
Z1180A - 760 x 1500 x 35mm
Nett Weight
Z1180A - tray - 12.2kg
Gross Weight Including Packaging
Z1180A - tray - 14.7kg
Packed Dimension
Z1180A - 1560 x 820 x 40 = 0.0512 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
EN 14527 CE
EN 251 Shower trays - Connecting dimensions
Additional Information
90mm waste diameter
Underside of tray pre-marked for fitting of feet
10 years guarantee
Subject to patent number GB 2440719(A)
Compatible Products
Z1208 -    Waterproof sealing strip
ZP2.ZL2 -    Panel Pack B
Downloads
  • Instructions - PDF - Z1180A (English)
  • Instructions - PDF - Z1180A (French)
  • 3D DWG - File - DWG  -  Z1180A (BSH-1576S.dwg)
  • 3D DXF - File - DXF  -  Z1180A (BSH-1576S.dxf)
  • 3D IGS - File - IGS  -  Z1180A (BSH-1576S.igs)
  • 3D RFA BIMM Objects - File - RFA  -  Z1180A (Z1180.rfa)

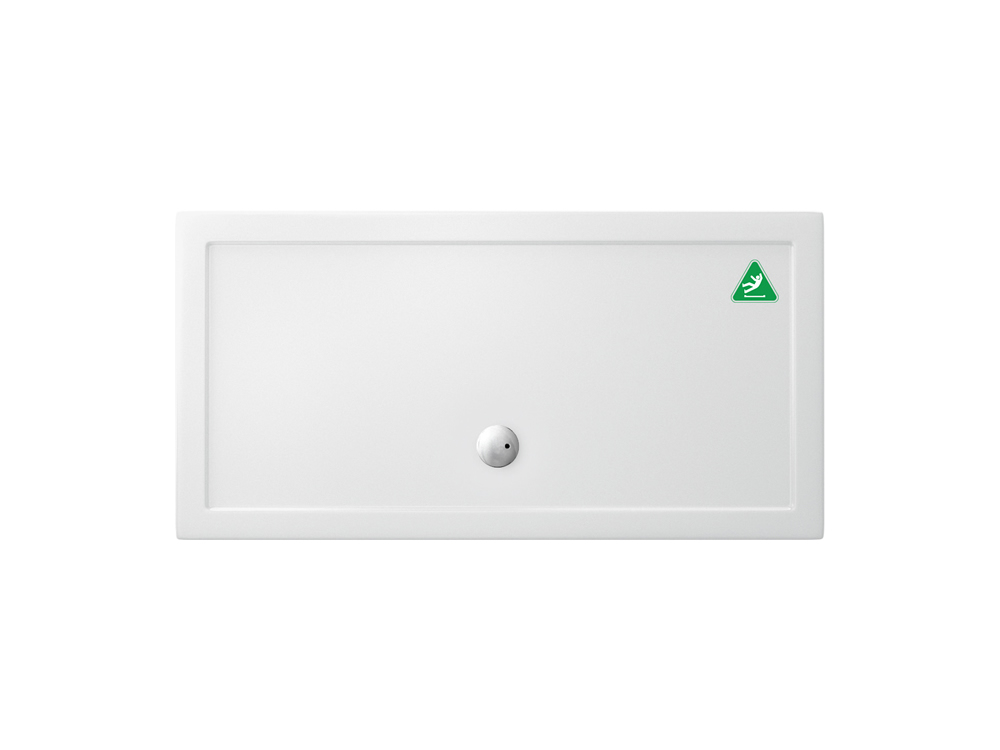

  • Product image 1 - jpg

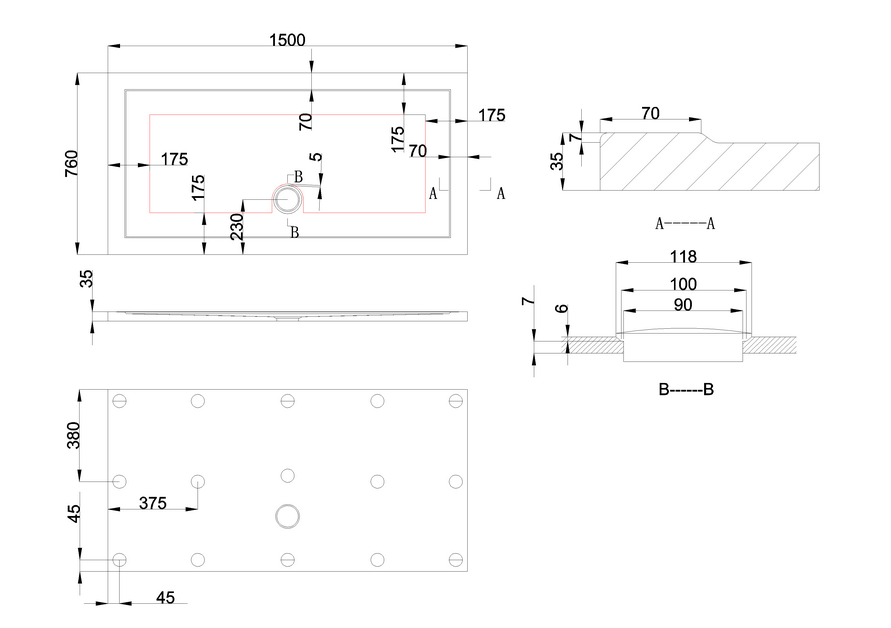

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
