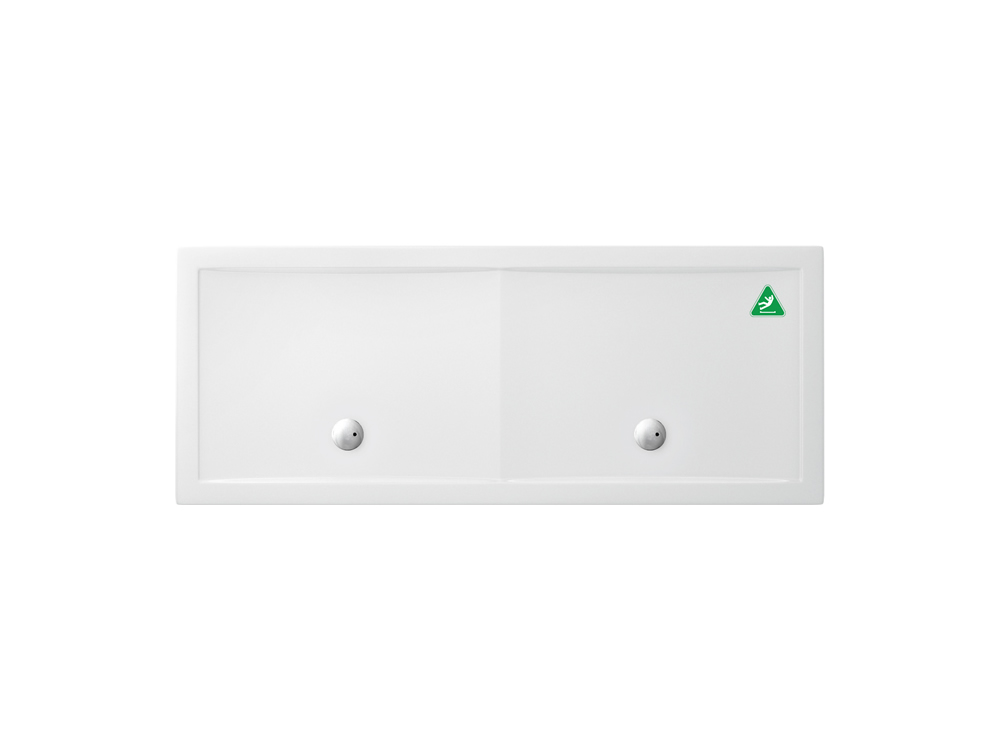

Large Rectangle
As Shown
| Z1345A Rectangle 2000 x 800 x 35mm (two wastes) anti-slip |
| Z1345A - Combined product code |
Colour
| Z1345A - tray - Gloss White |
Material
| Z1345A - tray - Acrylic |
Nett Weight
| Z1345A - tray - 18kg |
Gross Weight Including Packaging
| Z1345A - tray - 19kg |
Packed Dimension
| Z1345A - 2050 x 850 x 40 = 0.0697 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Tray sizes for 1800 and above will have no panels and no leg set. |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
Downloads
-
2D CAD-File - DWG -
Z1345A
(Z1345A.dwg)
-

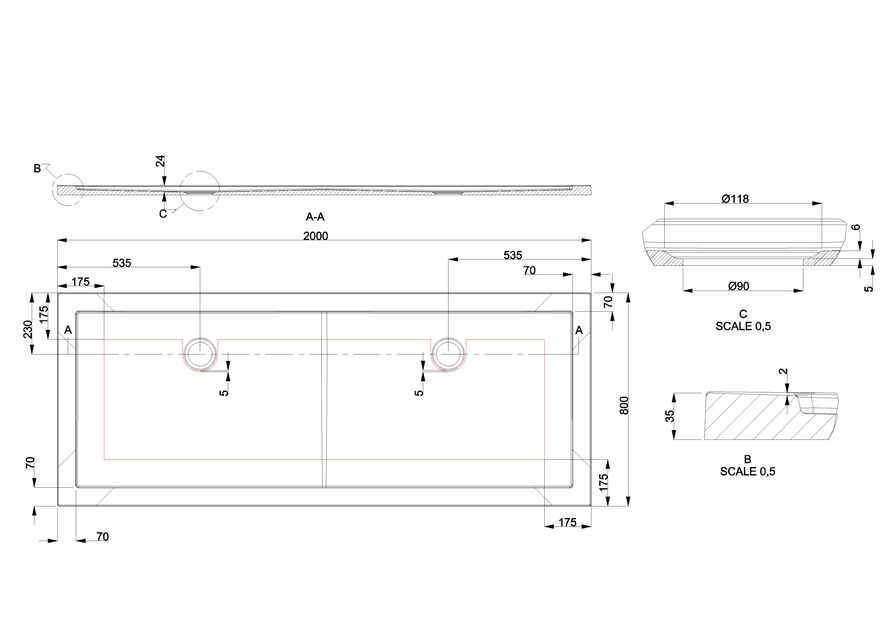

2D Drawing - PDF -
Z1345A
(Z1345A.pdf)
2D Drawing - PDF - Z1345A
-
3D DWG - File - DWG
-
Z1345A
(2000-8001B2.1346.dwg)
-
3D DXF - File - DXF
-
Z1345A
(2000-8001B2.1346.dxf)
-
3D IGS - File - IGS
-
Z1345A
(2000-8001B2.1346.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1345A
(Z1345.rfa)
