Large Rectangle

asaq2.Model.Web_product_new?.web_name

Alternate Text

This product is available in multiple options (Click on any option to show details for that option)
Z1179A	Rectangle 1500 x 700 shower tray
Z1180A	Rectangle 1500 x 760 shower tray
Z1181A	Rectangle 1500 x 800 shower tray
Z1361A	Rectangle 1500 x 900 shower tray
Z1182A	Rectangle 1600 x 700 shower tray
Z1231A	Rectangle 1600 x 800 shower tray
Z1232A	Rectangle 1600 x 900 shower tray
Z1183A	Rectangle 1700 x 700 shower tray
Z1184A	Rectangle 1700 x 760 shower tray
Z1185A	Rectangle 1700 x 800 shower tray
Z1341A	Rectangle 1700 x 900 shower tray
Z1342A	Rectangle 1700 x 1000 shower tray
Z1343A	Rectangle 1800 x 800 shower tray
Z1245A	Rectangle 1800 x 900 shower tray
Z1344A	Rectangle 1800 x 1000 shower tray
Z1345A	Rectangle 2000 x 800 shower tray
Z1346A	Rectangle 2000 x 900 shower tray
Z1347A	Rectangle 2000 x 1000 shower tray

As Shown

Z1343A Rectangle 1800x 800 x 35mm tray anti-slip

Z1343A - Combined product code

Colour

Z1343A - tray - Gloss White

Material

Z1343A - tray - Acrylic

Size

Z1343A - 800 x 1800 x 35mm

Nett Weight

Z1343A - tray - 17kg

Gross Weight Including Packaging

Z1343A - tray - 18kg

Packed Dimension

Z1343A - 1850 x 850 x 40 = 0.0629 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

EN 14527 CE

EN 251 Shower trays - Connecting dimensions

Additional Information

90mm waste diameter

Tray sizes for 1800 and above will have no panels and no leg set.

10 years guarantee

Subject to patent number GB 2440719(A)

Compatible Products

Z1208 - Waterproof sealing strip

Downloads

Instructions - PDF - Z1343A (English)
Instructions - PDF - Z1343A (French)

2D CAD-File - DWG - Z1343A (Z1343A.dwg)

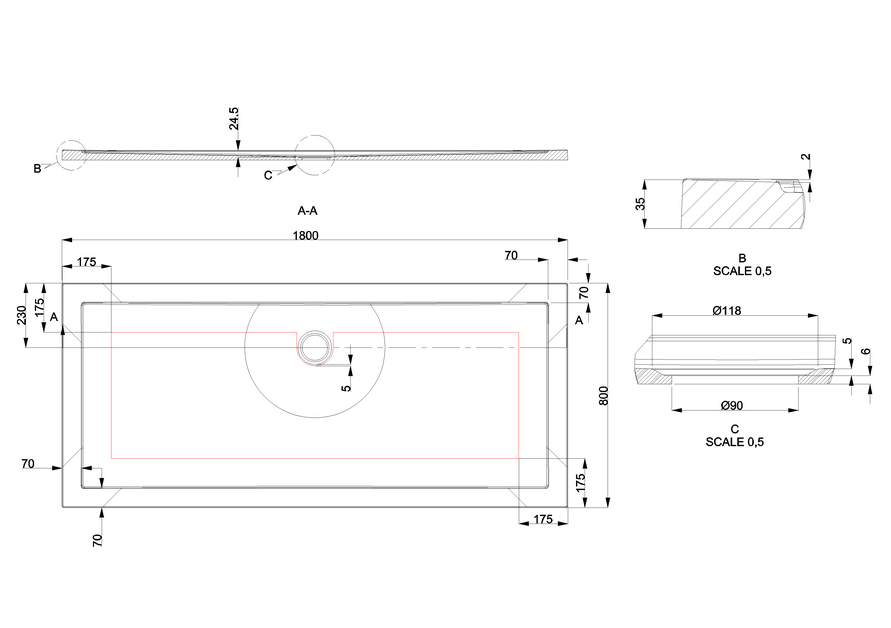

2D Drawing - PDF - Z1343A (Z1343A.pdf) 2D Drawing - PDF - Z1343A

3D DWG - File - DWG - Z1343A (1800-8001B2.1344.dwg)
3D DXF - File - DXF - Z1343A (1800-8001B2.1344.dxf)
3D IGS - File - IGS - Z1343A (1800-8001B2.1344.igs)
3D RFA BIMM Objects - File - RFA - Z1343A (Z1343.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
