Large Rectangle

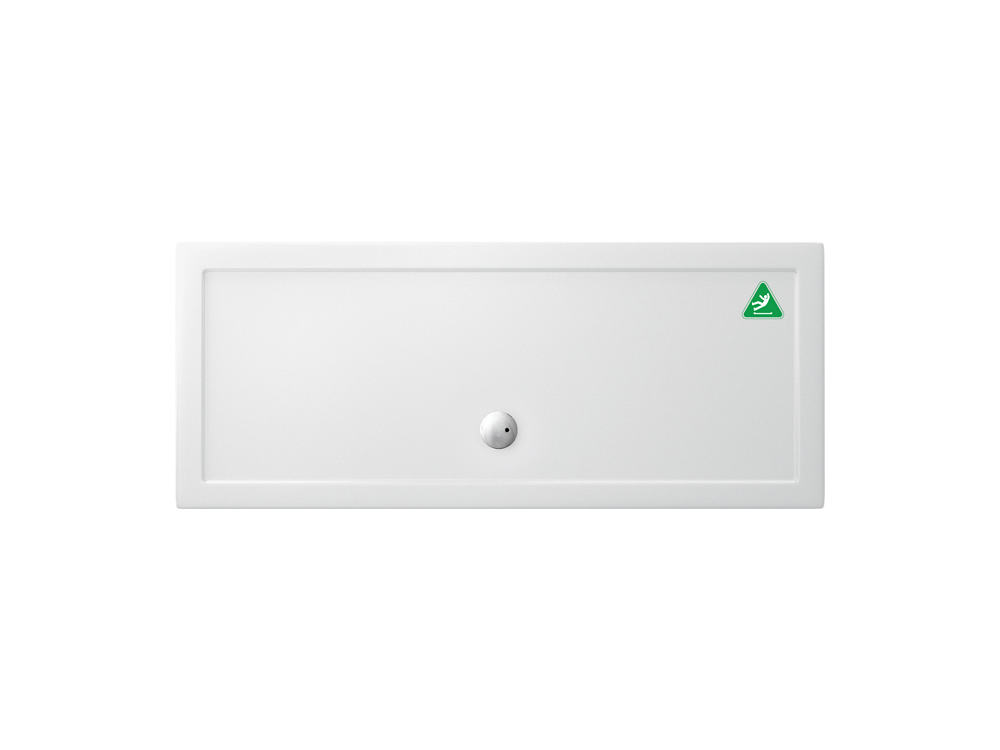

As Shown
| Z1183A Rectangle 1700 x 700 x 35mm tray anti-slip |
| Z1183A - Combined product code |
Colour
| Z1183A - tray - Gloss White |
Material
| Z1183A - tray - Acrylic |
Nett Weight
| Z1183A - tray - 13.5kg |
Gross Weight Including Packaging
| Z1183A - tray - 16.5kg |
Packed Dimension
| Z1183A - 1750 x 750 x 40 = 0.0525 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP2.ZL2 - Panel Pack B |
Downloads
-
2D CAD-File - DWG -
Z1183A
(Z1183A.dwg)
-

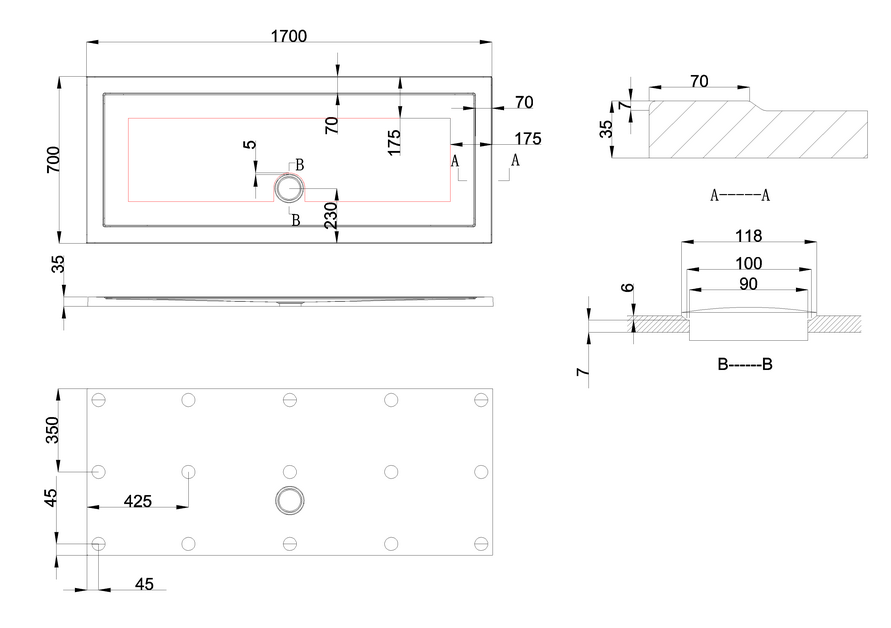

2D Drawing - PDF -
Z1183A
(Z1183A.pdf)
2D Drawing - PDF - Z1183A
-
3D DWG - File - DWG
-
Z1183A
(BSH-1770S.dwg)
-
3D DXF - File - DXF
-
Z1183A
(BSH-1770S.dxf)
-
3D IGS - File - IGS
-
Z1183A
(BSH-1770S.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1183A
(Z1183.rfa)
