Large Rectangle

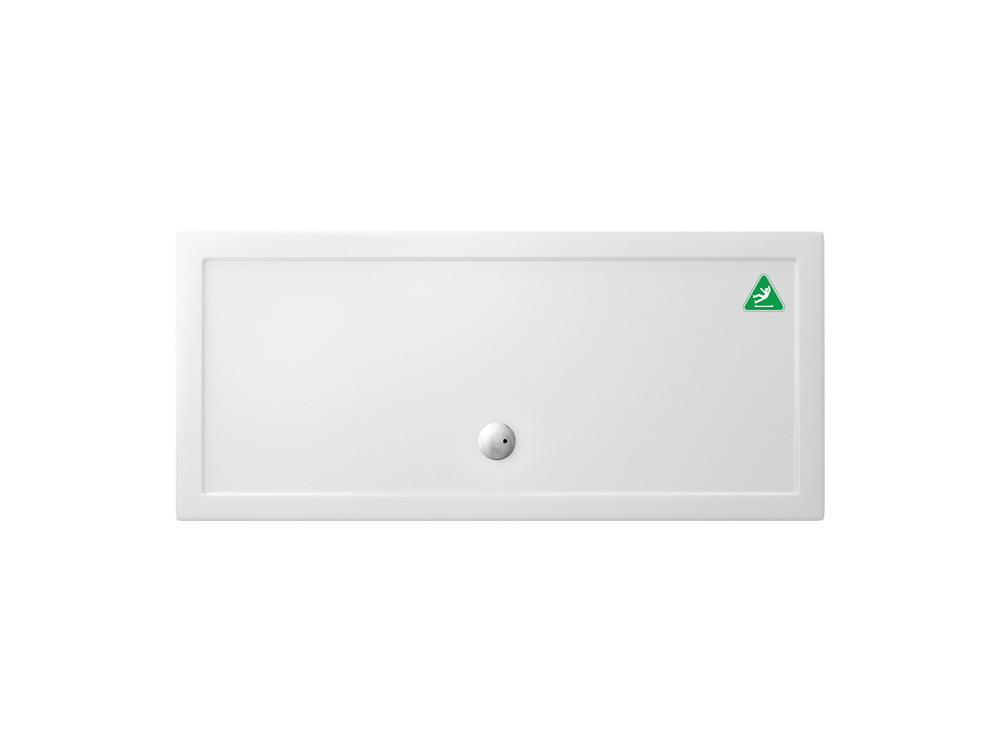

As Shown
| Z1184A Rectangle 1700 x 760 x 35mm tray anti-slip |
| Z1184A - Combined product code |
Colour
| Z1184A - tray - Gloss White |
Material
| Z1184A - tray - Acrylic |
Nett Weight
| Z1184A - tray - 14kg |
Gross Weight Including Packaging
| Z1184A - tray - 17kg |
Packed Dimension
| Z1184A - 1760 x 820 x 40 = 0.0577 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP2.ZL2 - Panel Pack B |
Downloads
-
2D CAD-File - DWG -
Z1184A
(Z1184A.dwg)
-

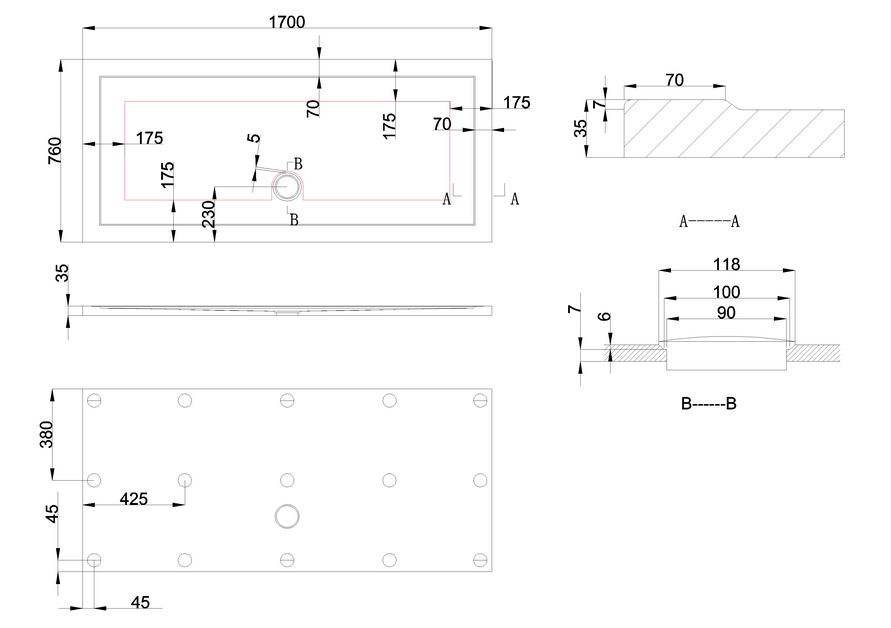

2D Drawing - PDF -
Z1184A
(Z1184A.pdf)
2D Drawing - PDF - Z1184A
-
3D DWG - File - DWG
-
Z1184A
(BSH-1776S.dwg)
-
3D DXF - File - DXF
-
Z1184A
(BSH-1776S.dxf)
-
3D IGS - File - IGS
-
Z1184A
(BSH-1776S.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1184A
(Z1184.rfa)
