Large Rectangle

asaq2.Model.Web_product_new?.web_name

Alternate Text

This product is available in multiple options (Click on any option to show details for that option)
Z1179A	Rectangle 1500 x 700 shower tray
Z1180A	Rectangle 1500 x 760 shower tray
Z1181A	Rectangle 1500 x 800 shower tray
Z1361A	Rectangle 1500 x 900 shower tray
Z1182A	Rectangle 1600 x 700 shower tray
Z1231A	Rectangle 1600 x 800 shower tray
Z1232A	Rectangle 1600 x 900 shower tray
Z1183A	Rectangle 1700 x 700 shower tray
Z1184A	Rectangle 1700 x 760 shower tray
Z1185A	Rectangle 1700 x 800 shower tray
Z1341A	Rectangle 1700 x 900 shower tray
Z1342A	Rectangle 1700 x 1000 shower tray
Z1343A	Rectangle 1800 x 800 shower tray
Z1245A	Rectangle 1800 x 900 shower tray
Z1344A	Rectangle 1800 x 1000 shower tray
Z1345A	Rectangle 2000 x 800 shower tray
Z1346A	Rectangle 2000 x 900 shower tray
Z1347A	Rectangle 2000 x 1000 shower tray

As Shown

Z1342A Rectangle 1700 x 1000 x 35mm tray anti-slip

Z1342A - Combined product code

Colour

Z1342A - tray - Gloss White

Material

Z1342A - tray - Acrylic

Size

Z1342A - 1000 x 1700 x 35mm

Nett Weight

Z1342A - tray - 18kg

Gross Weight Including Packaging

Z1342A - tray - 19kg

Packed Dimension

Z1342A - 1750 x 1050 x 40 = 0.0735 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

EN 14527 CE

EN 251 Shower trays - Connecting dimensions

Additional Information

Subject to patent number GB 2440719(A)

90mm waste diameter

Underside of tray pre-marked for fitting of feet

10 years guarantee

Compatible Products

Z1208 - Waterproof sealing strip

ZP2.ZL2 - Panel Pack B

Downloads

Instructions - PDF - Z1342A (English)
Instructions - PDF - Z1342A (French)

2D CAD-File - DWG - Z1342A (Z1342A.dwg)

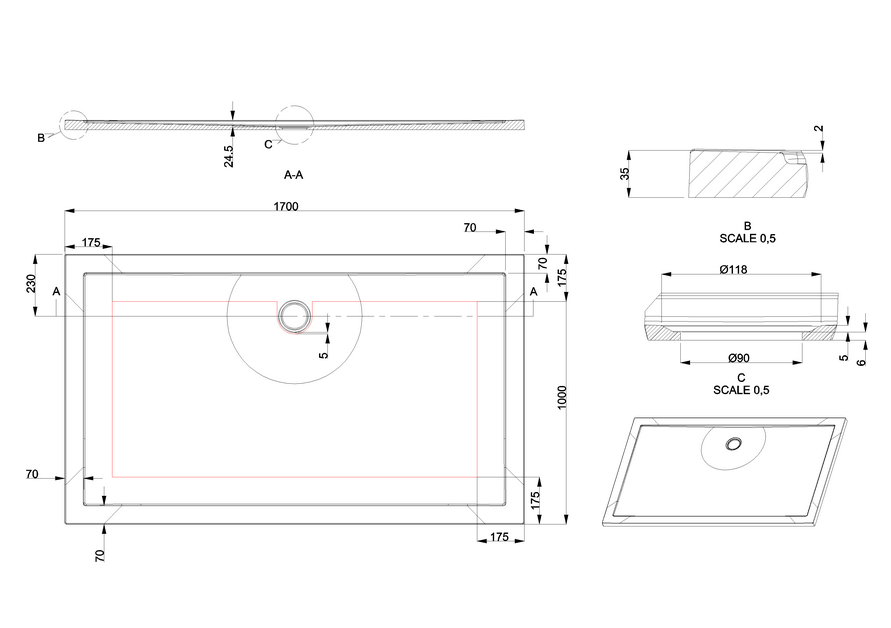

2D Drawing - PDF - Z1342A (Z1342A.pdf) 2D Drawing - PDF - Z1342A

3D DWG - File - DWG - Z1342A (1700-10001B2.1343.dwg)
3D DXF - File - DXF - Z1342A (1700-10001B2.1343.dxf)
3D IGS - File - IGS - Z1342A (1700-10001B2.1343.igs)
3D RFA BIMM Objects - File - RFA - Z1342A (Z1342.rfa)

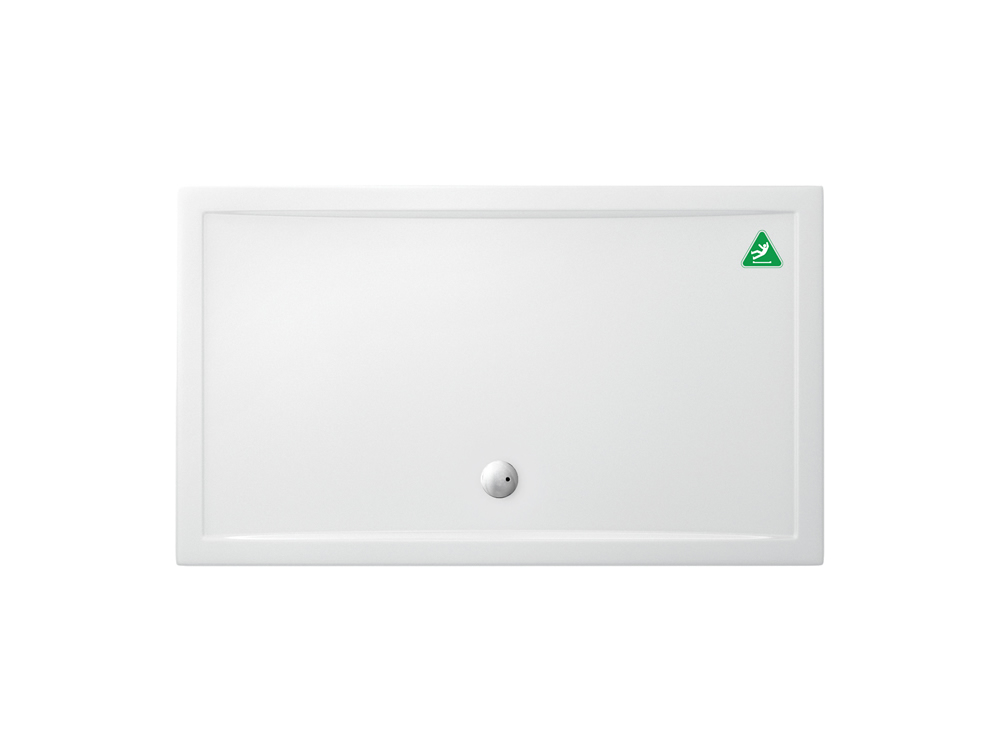

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
