Large Rectangle

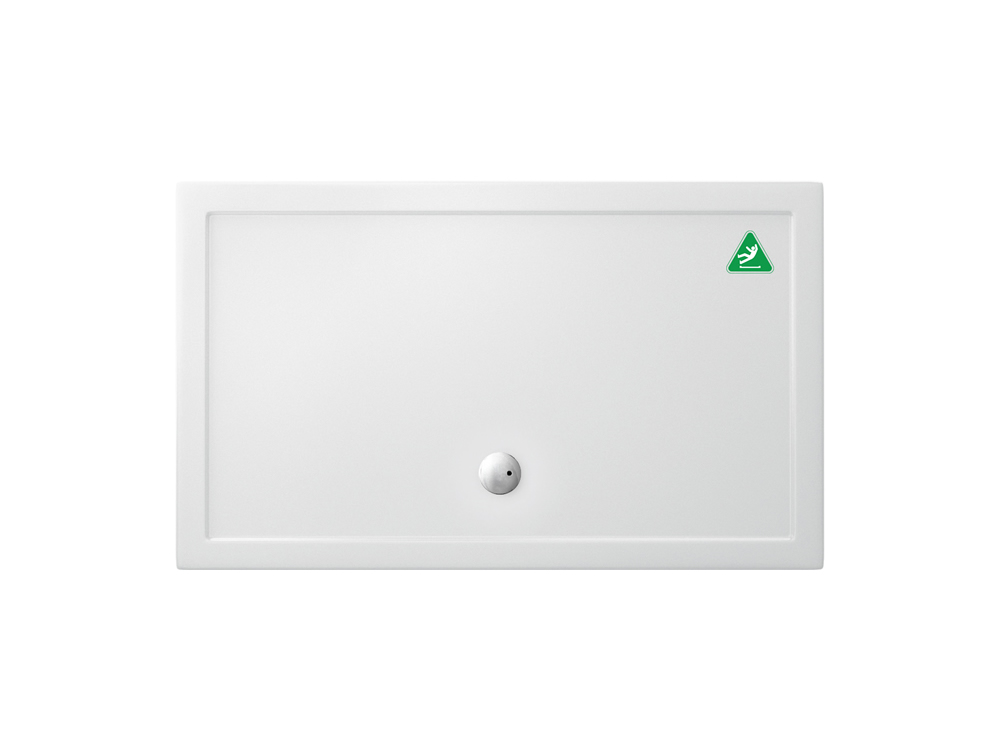

As Shown
| Z1361A Rectangle 1500 x 900 x 35mm tray anti-slip |
| Z1361A - Combined product code |
Colour
| Z1361A - tray - Gloss White |
Material
| Z1361A - tray - Acrylic |
Nett Weight
| Z1361A - tray - 13kg |
Gross Weight Including Packaging
| Z1361A - tray - 15.5kg |
Packed Dimension
| Z1361A - 1550 x 950 x 40 = 0.0589 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP2.ZL2 - Panel Pack B |
Downloads
-
2D CAD-File - DWG -
Z1361A
(Z1361A.dwg)
-

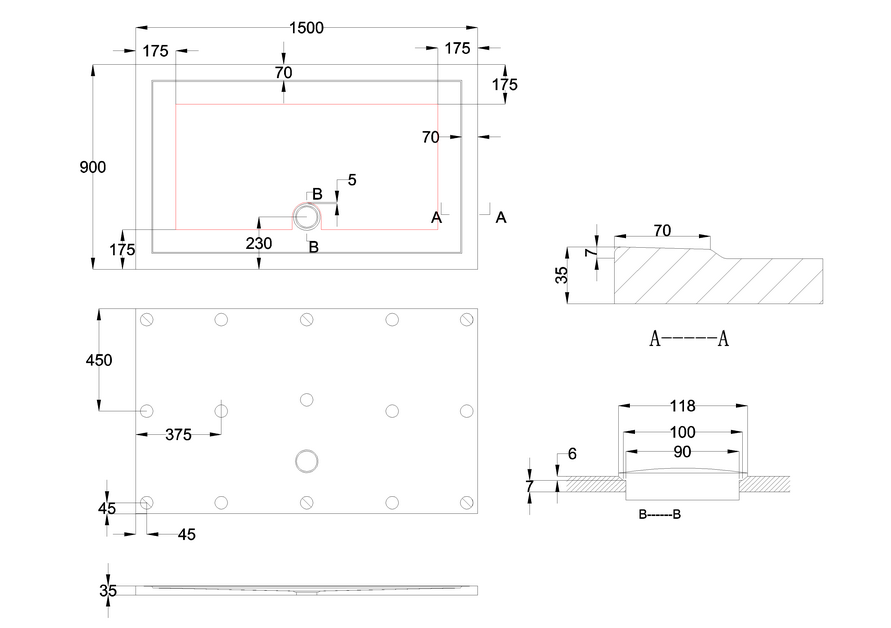

2D Drawing - PDF -
Z1361A
(Z1361A.pdf)
2D Drawing - PDF - Z1361A
-
3D DWG - File - DWG
-
Z1361A
(BSH-1590.dwg)
-
3D DXF - File - DXF
-
Z1361A
(BSH-1590.dxf)
-
3D IGS - File - IGS
-
Z1361A
(BSH-1590.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1361A
(Z1361.rfa)
